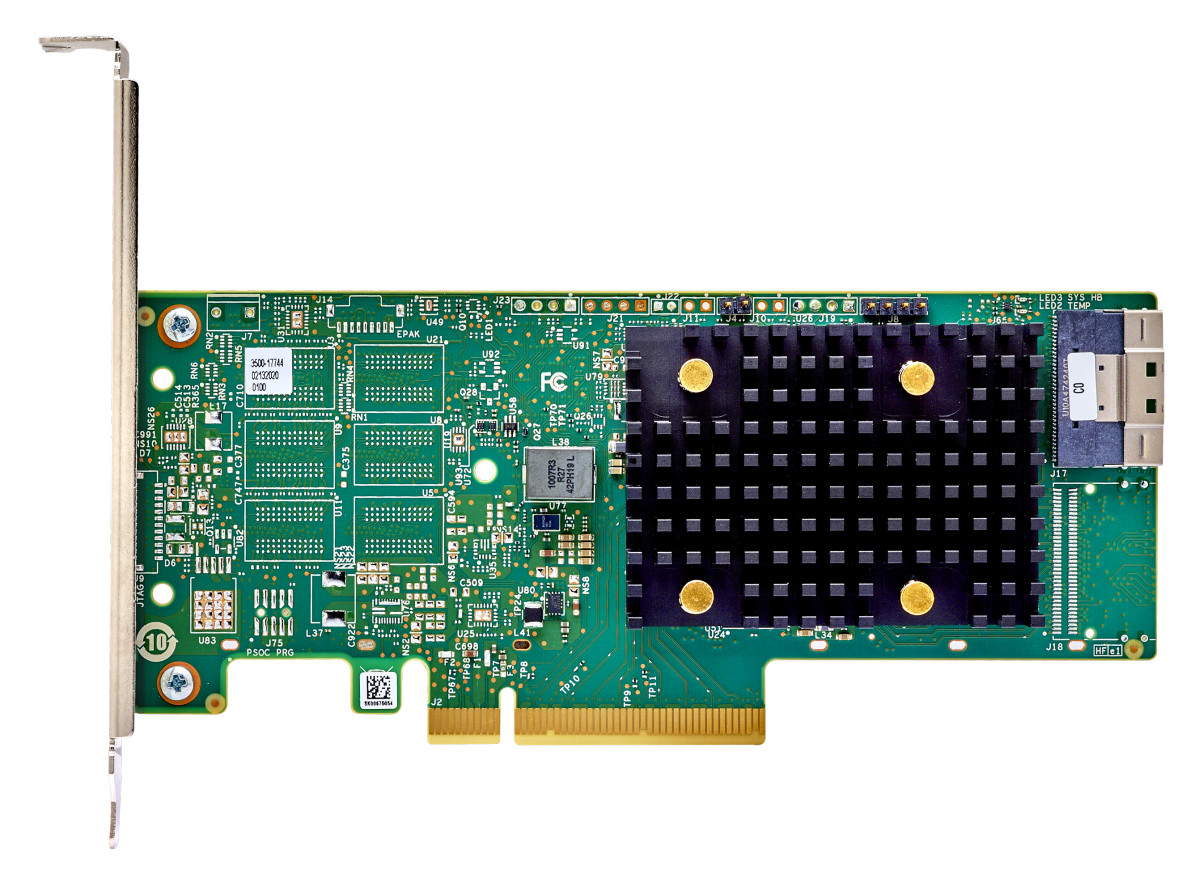

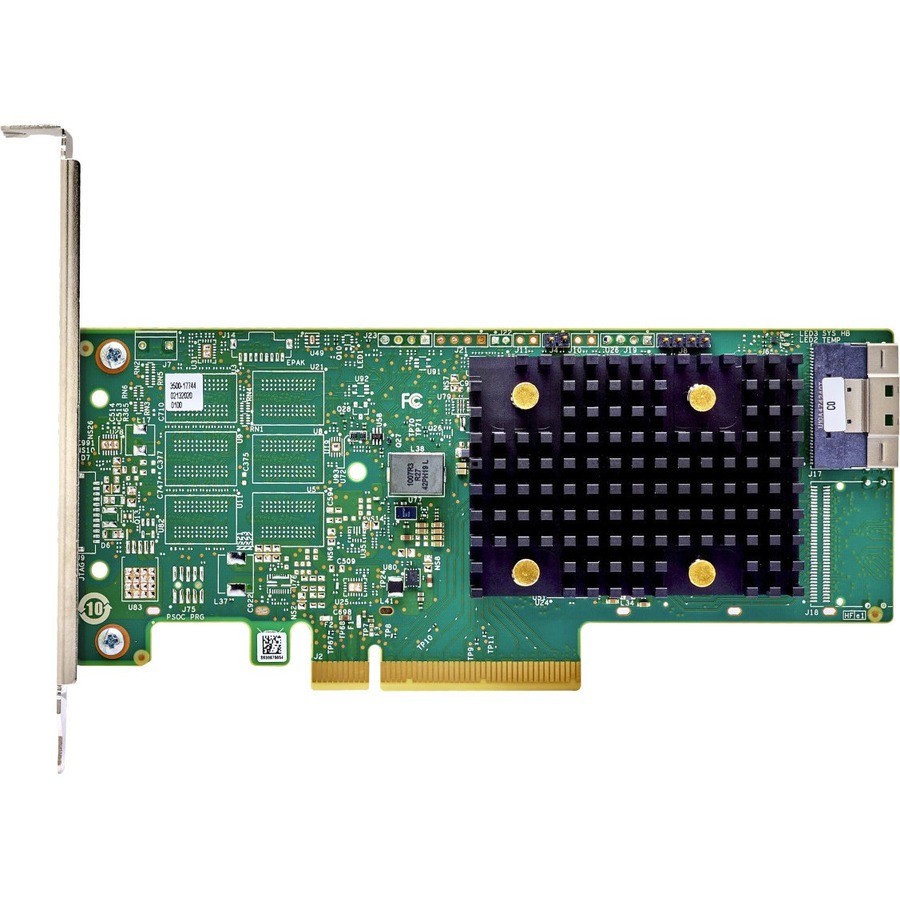

The ThinkSystem 440-8i is a high performance PCIe 4.0 host bus adapter for internal storage connectivity in ThinkSystem servers. The adapter integrates the latest enhancements SAS technology and offers 8 lanes of 12 Gbps SAS.
Tech specs
Interface
PCIe 4.0 x8
Form factor
low-profile
Full specification
8-Channel SAS/SATA storage controller
12 Gbps SAS data transfer rate
PCIe 4.0 x8 interface
Low-profile form factor
2x4 SFF-8654 port connectors (8 total SAS ports, all internal)
Passive cooling
SAS3808 controller chipset
JBOD and RAID Level 2 support
Operating temperature: 10-55°C
Compatible with ThinkSystem servers (SR630 V2, SR650 V2, etc.)
