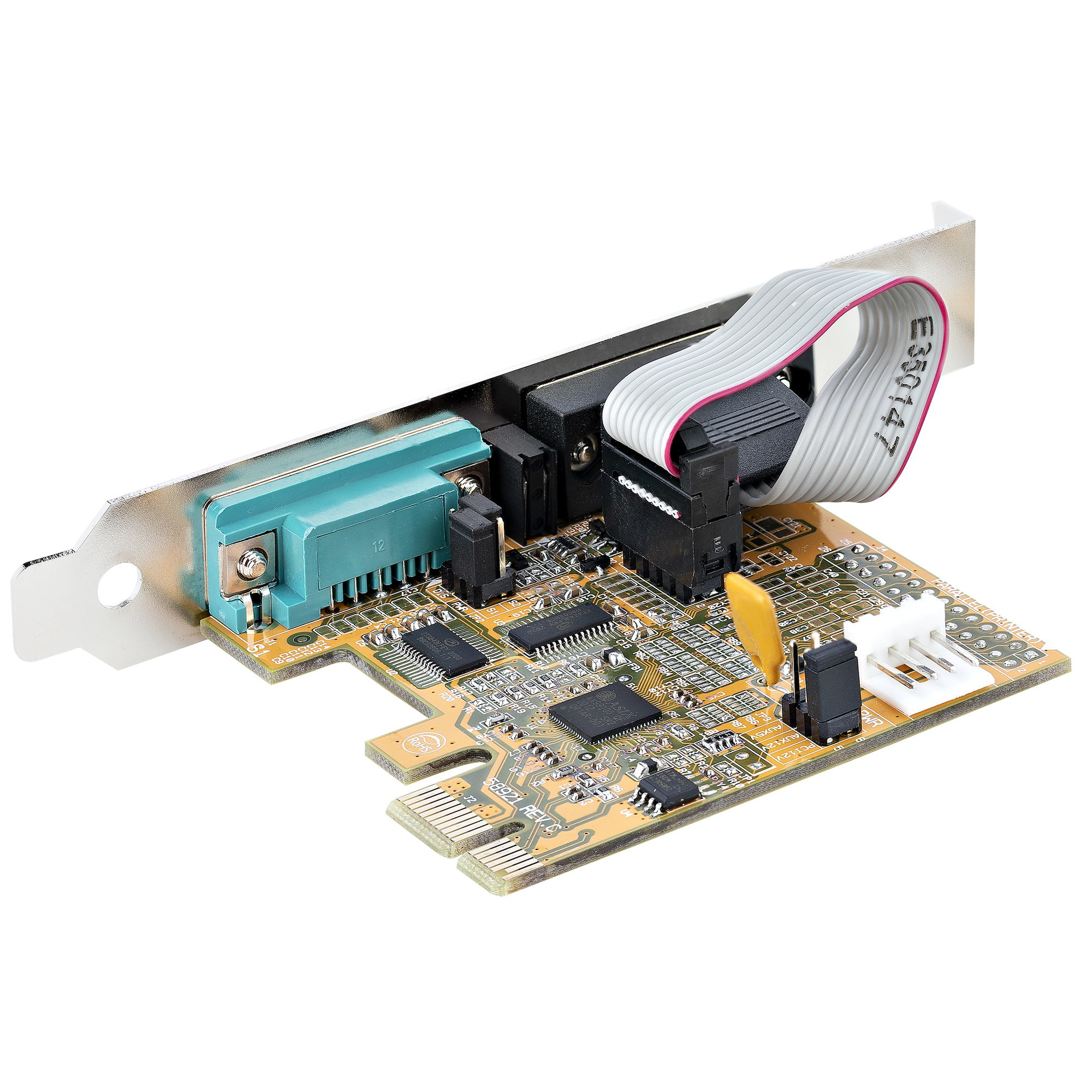

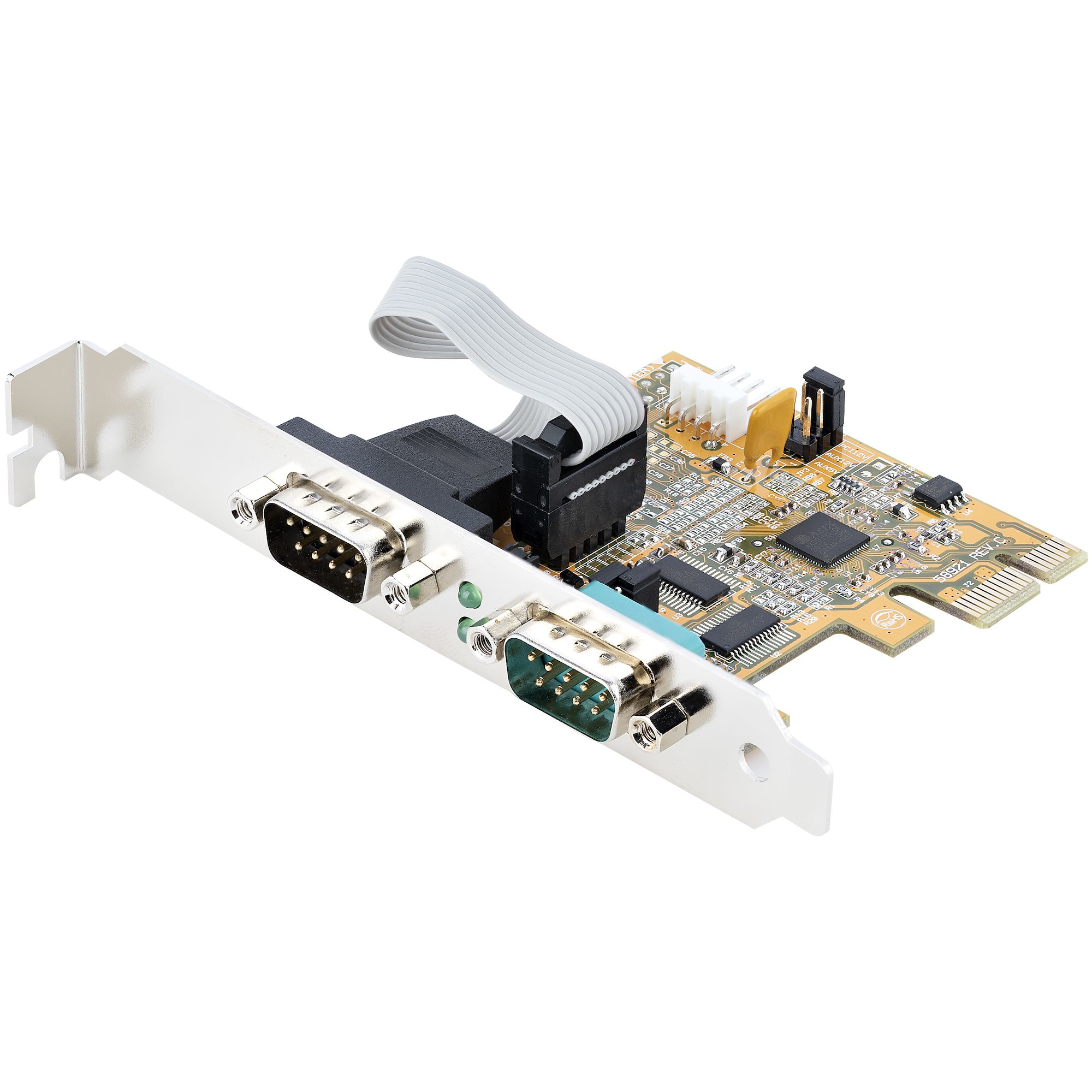

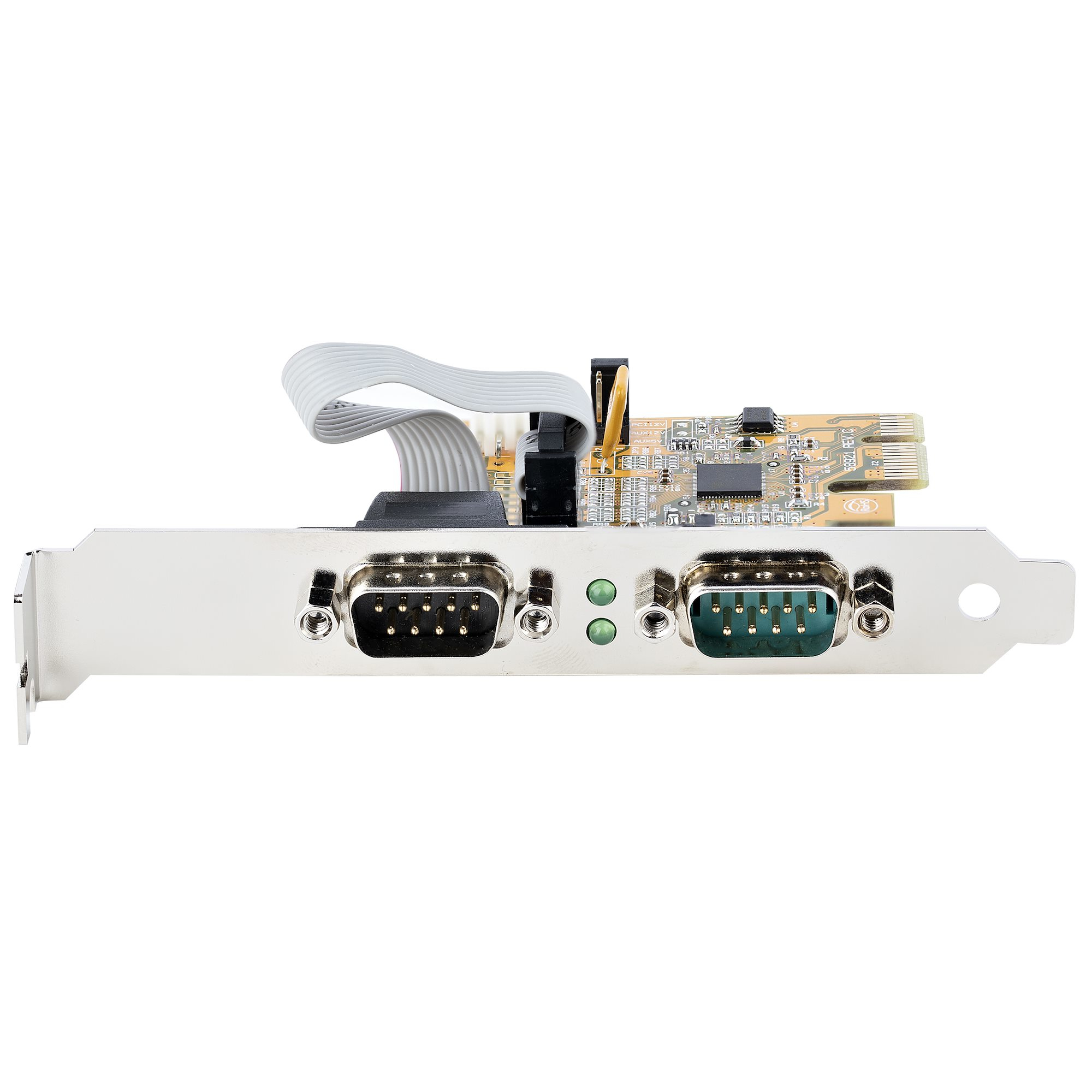

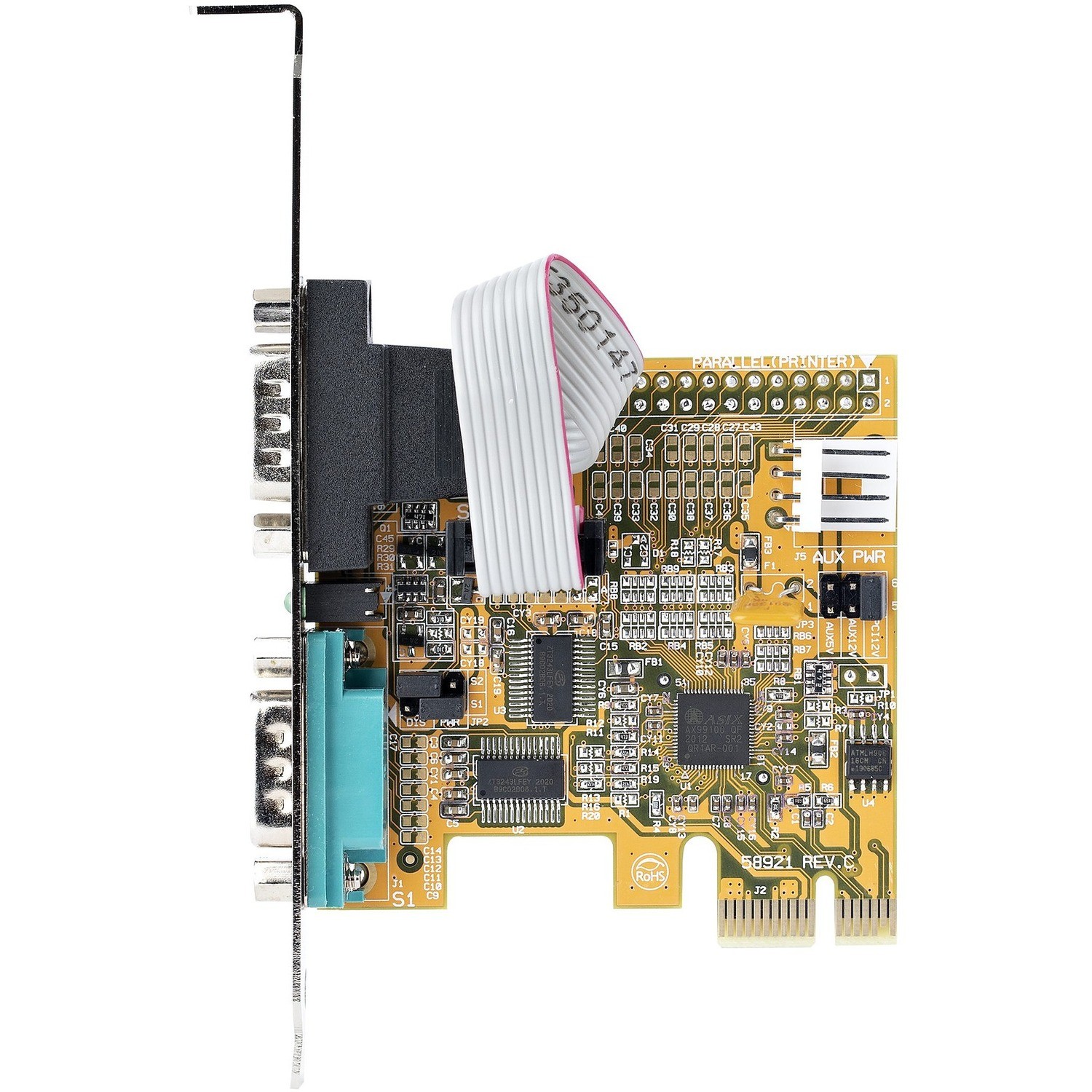

A 2-port PCI Express serial card that adds dual RS-232 (DB9) serial connectivity to desktop computers or small form factor systems. Features 16C1050 UART support with speeds up to 921.6 Kbps per port and includes low-profile brackets for flexible installation.
PCI Express x1 interface
2x RS-232 (DB9) serial ports
16C1050 UART chipset
256-byte FIFO buffer (transmit/receive)
Maximum baud rate: 921.6 Kbps per port
Supports 5/6/7/8/9 data bits
Parity modes: Even, Mark, No, Odd, Space
LED activity indicators (Receive/Transmit)
Low-profile and standard brackets included
Supports Windows 7/8/8.1/10/11 and Linux 2.6.13+
Operating temperature: 0–55°C
Storage temperature: -40–75°C
Dimensions: 2.6" × 2.6" × 0.7" (height)
2-year limited warranty
RoHS and WEEE compliant
Made in Taiwan
