Atdec 3x1 wall menu board mount
ADBS-3X1-30TW is a wall mount for three displays in 3x1 configuration.
It is used for larger digital menu boards with displays to approx, 55" each. The tilt brackets can angle the screens toward the ground.
Choose me for:
Wall mounted 3x1 menu boards
Digital information boards
Displays that tilt downward for easier view
Technical specifications:
Each display to 50kg (110lb)
Displays to ~55" landscape (check display dimensions)
Horizontal rail 1.75m (68.90")
Tilting brackets -15° to +5°
Universal VESA to 400 high
Lightweight & sturdy aluminium material
Black finish
10 year warranty
Components:
3 x ADB-B400T tilt bracket sets

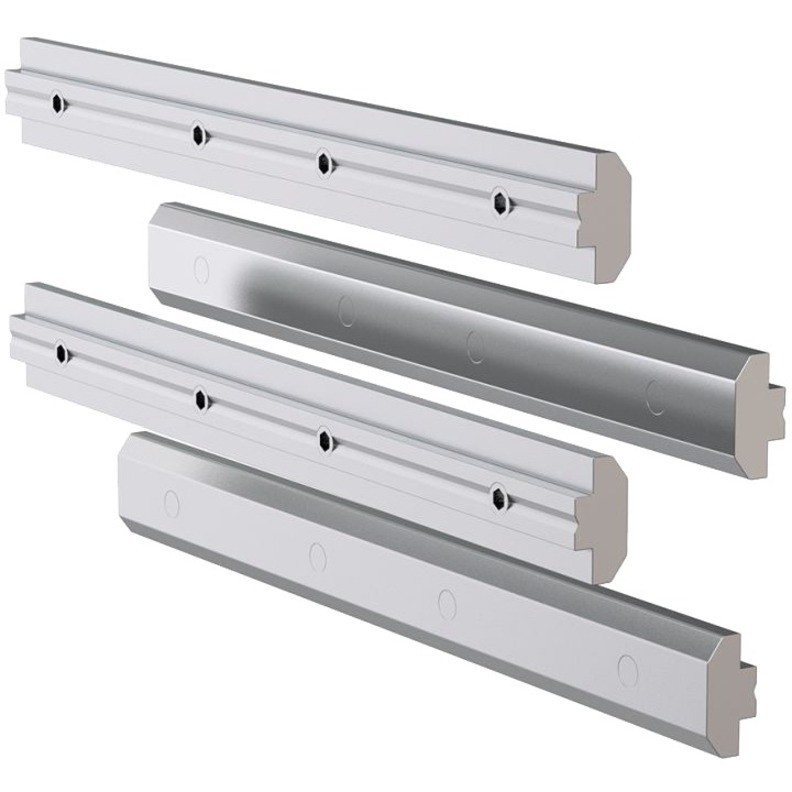

1 x ADB-R125-B rail
1 x ADB-R175-B rail

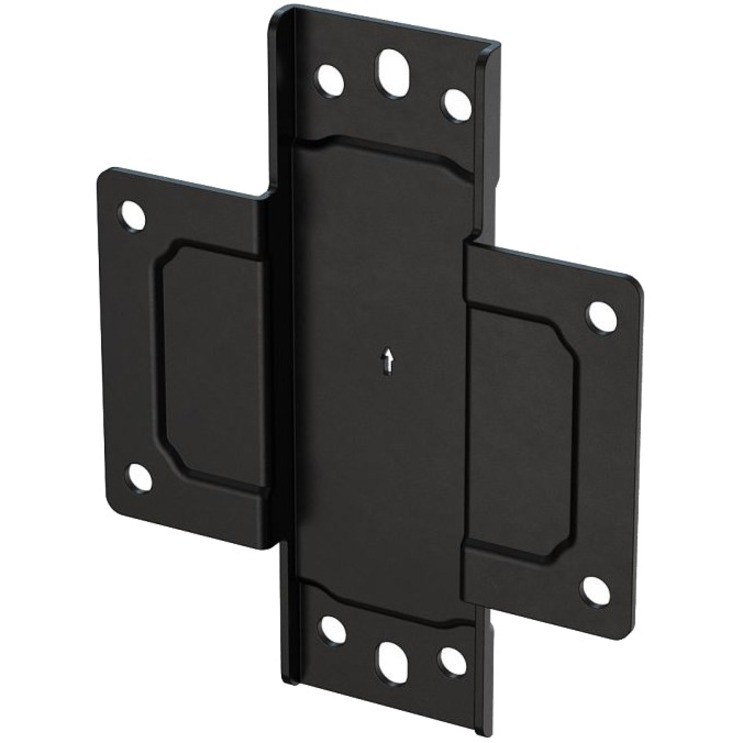

3 x ADB-WP rail to wall attachment plate
1 x ADB-RX rail extension kit
Learn more about our modular menu boards and digital signage system.
