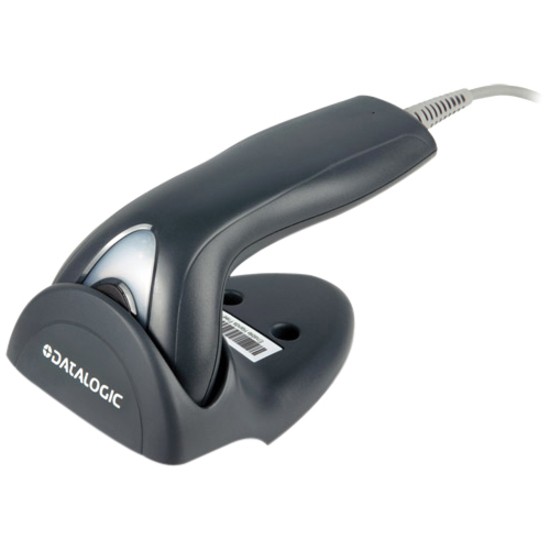

1D Linear Barcode Scanner (Imager)
USB Interface
Contact Reader with Omnidirectional Scan Pattern
Reading Width: 65 mm
CCD Sensor: 2088 pixels
Maximum Scan Resolution: 4 mil (0.10 mm)
Operating Voltage: 5 VDC ±5%
Power Consumption: 100 mA (operating), <500 µA (standby)
Max Scan Rate: 256 scans/sec
Reading Indicators: LED, Beeper
Drop Resistance: 1.2 m / 3.9 ft
IP Rating: IP30
Operating Temperature: 0 to 55°C / 32 to 131°F
Storage Temperature: -20 to 70°C / -4 to 158°F
Humidity: 90% non-condensing
ESD Protection: 16 kV
Includes: Scanner, Holder (SH5171), USB Cable 2 m (90A052065)
