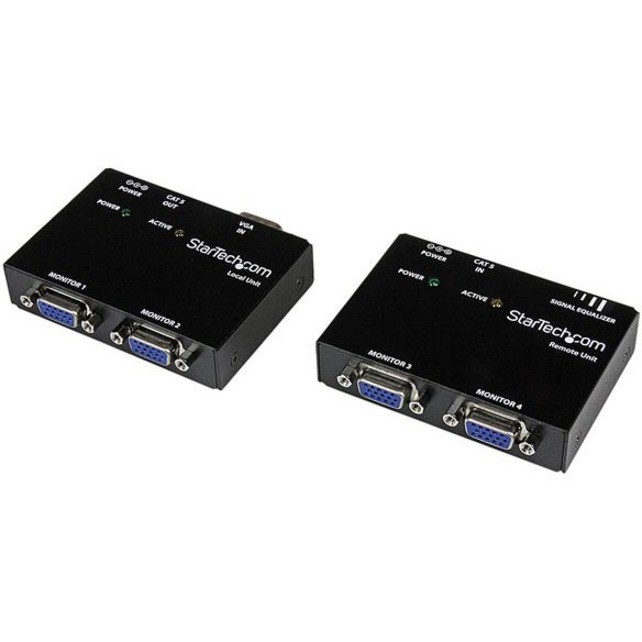

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from a single source. It is a bundled kit including both a local transmitter and a remote receiver unit.
Tech specs
Colour
black
Full specification
Extends VGA signals up to 150m (500 feet) over Cat5/Cat5e UTP cable
Supports up to 4 displays: 2 local and 2 remote

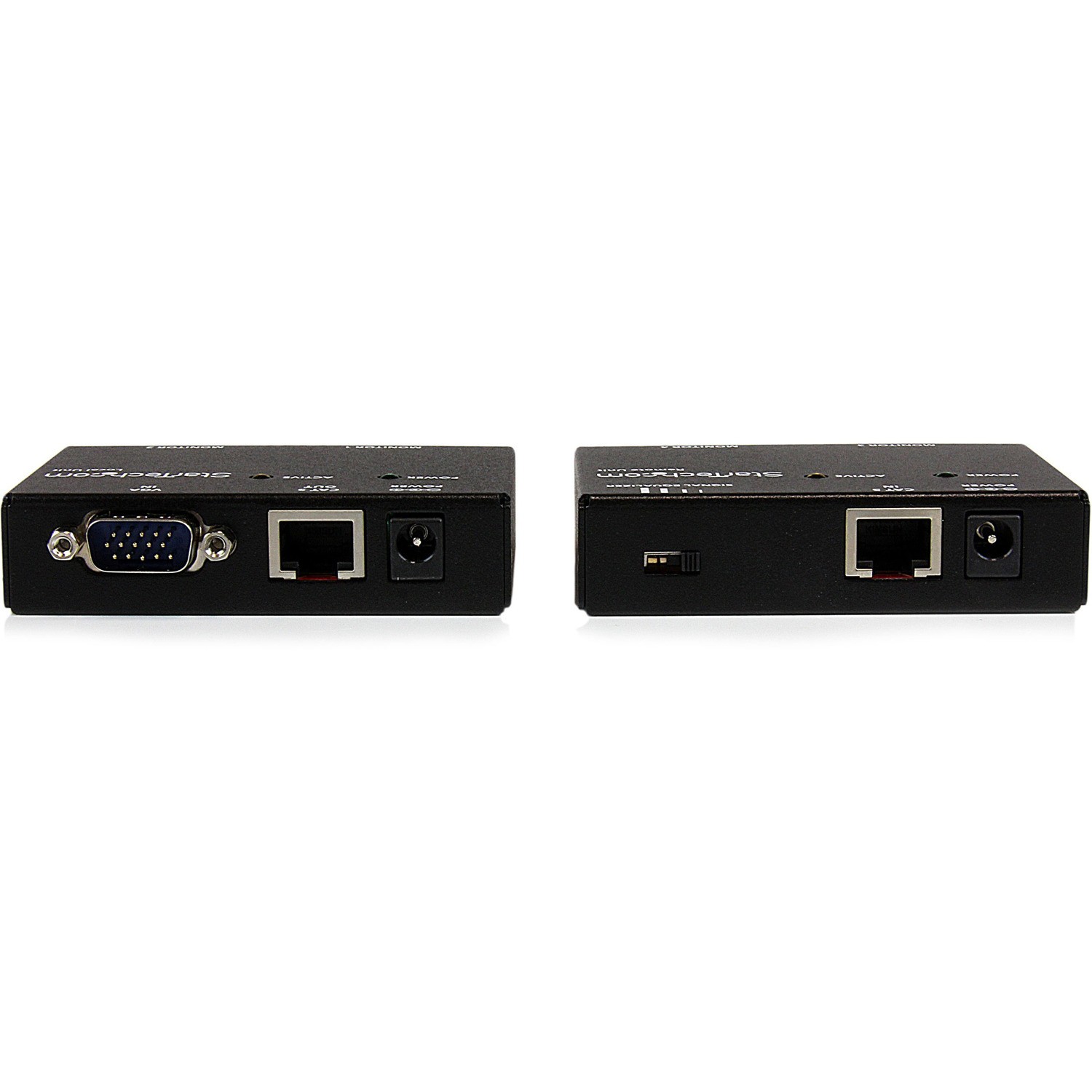

Local unit: 1 VGA input (Male) + 2 VGA outputs (Female) + 1 RJ-45 Female
Remote unit: 2 VGA outputs (Female) + 1 RJ-45 Female
Max resolution: 1280x1024 SXGA @ 300ft (100m); 1024x768 @ 500ft (150m)
Power: 9V DC, 0.6A, 5.4W consumption via included AC adapter
Operating temperature: 0–50°C
Includes mounting bracket and rubber feet
2-year warranty with lifetime technical support
