Description

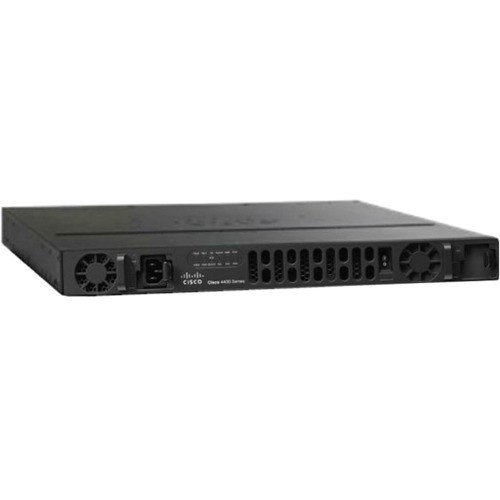

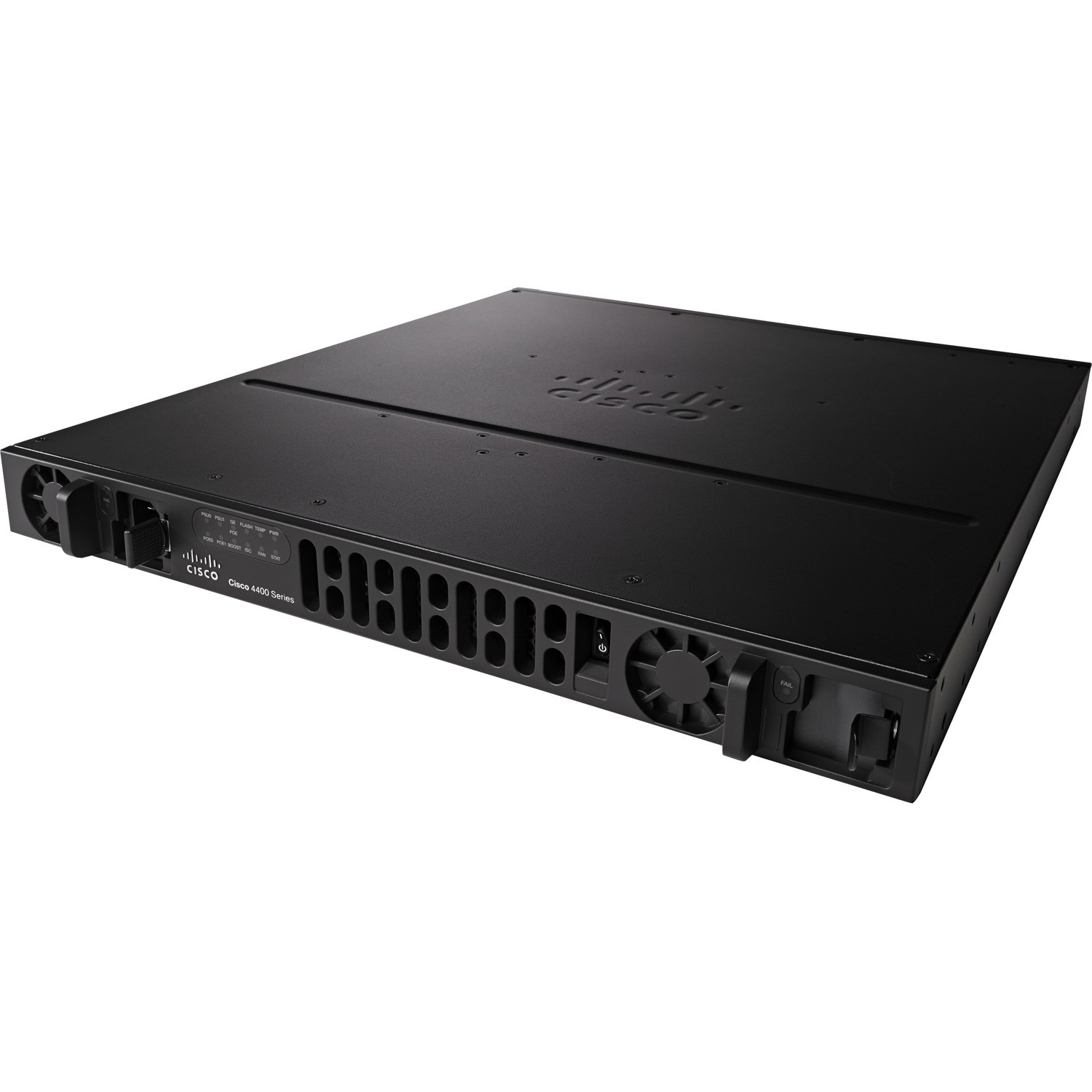

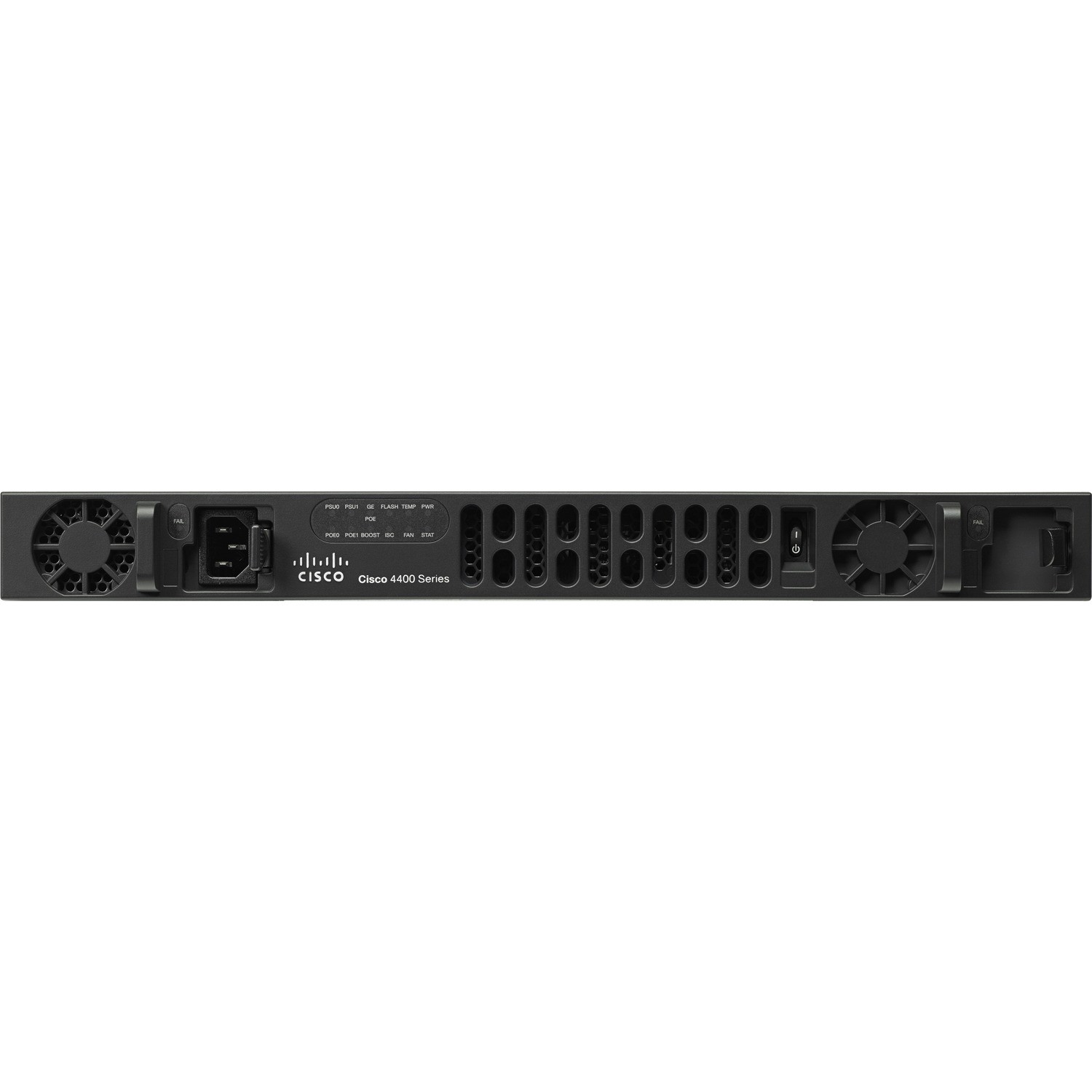

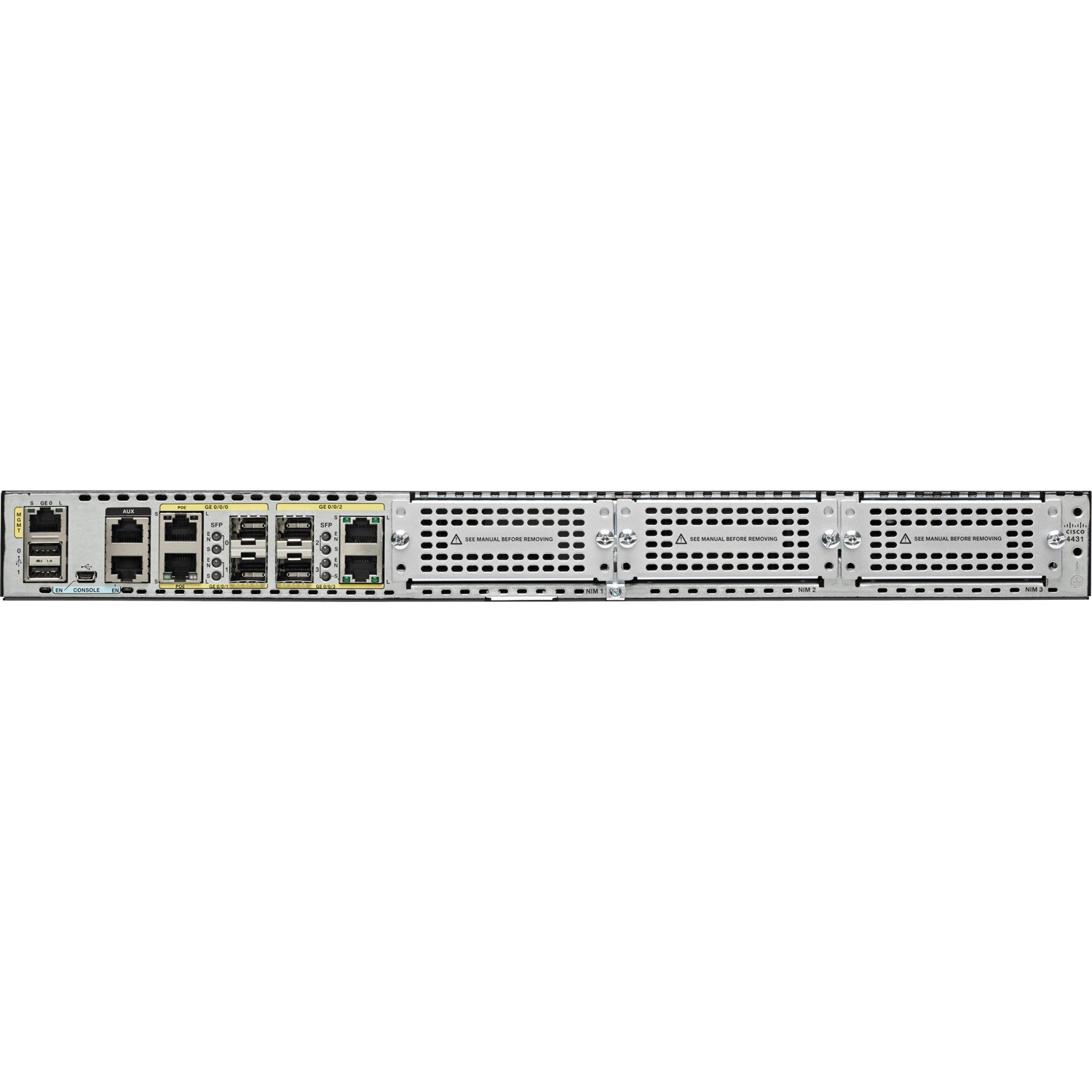

The Cisco ISR4431 Integrated Services Router supports 3 Network Interface Modules (NIM) slots and delivers 500 Mbps to 1 Gbps aggregate throughput. It has 4 onboard 10/100/1000 ports. It features 8GB Flash Memory and 4 GB DRAM default (control plane).</description>
<parameter name="specification">Throughput: 500 Mbps - 1 Gbps aggregate
Ports: 4 Gigabit Ethernet (RJ45) + 4 SFP ports
NIM Slots: 3 (supports 2 single-wide or 1 double-wide module)
Flash Memory: 8 GB
DRAM: 4 GB (control plane) + 2 GB (data plane) default
Form Factor: 1U rack-mountable
Power Supply: Dual integrated power supplies (AC/DC)
Power Consumption: 65 W typical
Operating Temperature: 0 - 40 °C
Security Features: IPSec, EZVPN, DMVPN, FlexVPN
Routing Protocols: BGP, EIGRP, IS-IS, OSPF
