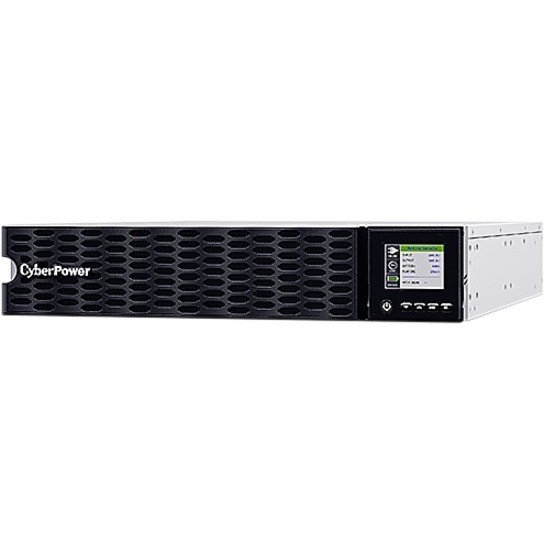

Name: CyberPower Online Series 6000VA/6000W Rack/Tower Online UPS - 2U - 12* 12V/7AH - Built-in Equalisation Module (EQM)- (OL6KERTHD) -2 Yr WTY
Brand: CyberPower
SKU: 1231228
Price: 6998 AUD
Availability: InStock

Description

CyberPower Online Series 6000VA/6000W Rack/Tower Online UPS - 2U - 12* 12V/7AH - Built-in Equalisation Module (EQM) for battery life extension, support EBM x 10pcs, Outlets 6 x C13 4 x C19 PDU - 2 Yrs Adv. Replacement WTY - Incl Rail kit

Tech specs

Capacity	6000VA/6000W
Form factor	2U rackmount/tower

Full specification

Specifications:

Phase: Single Phase

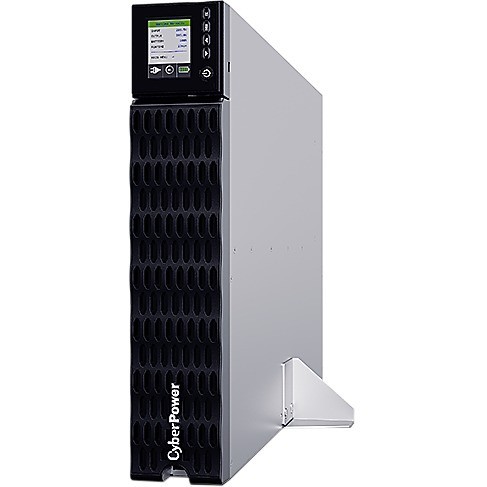

Form Factor: Rackmount, Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 97%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
Input Voltage Range ( Vac ): 200 - 240
Adjustable Voltage Range ( Vac ): 0-25% Load for 120 - 139 Vac | 0-50% Load for 140 - 159 Vac | 0-75% Load for 160 - 179 Vac | 0-100% Load for 180 - 280 Vac
Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 32
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
Output Capacity (Watts): 6000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 200 ± 2% | 208 ± 2% | 220 ± 2% | 230 ± 2% | 240 ± 2%
Output Voltage Setting: Configurable
On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
Output Frequency Setting: Configurable
Power Factor: 1
ECO Mode Voltage Tolerance: ± 10 % | ± 15 %
Overload Protection: Internal Current Limiting, Circuit Breaker
Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
Overload Protection (Bypass Mode): Circuit Breaker
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD 3%
Harmonic Distortion (Non-linear Load): THD 5%
Internal Bypass: Automatic Bypass, Manual Bypass

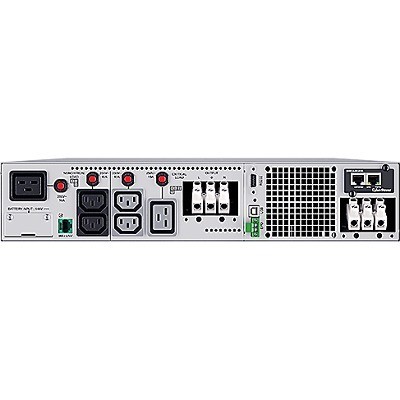

Outlet(s) - Total: 7
Outlet Type: IEC C13 x 4 | IEC C19 x 2 | Hardwire Terminal Block x 1
Outlet(s) - Battery & Surge Protected: 7
Outlet(s) - Critical Load (CL): 4
Outlet(s) - Non-Critical Load (NCL): 3
Typical Transfer Time ( ms ): 0
Runtime at Half Load ( min ): 4.9
Runtime at Full Load ( min ): 1.4
Typical Recharge Time ( Hours ): 4
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes - Qualified Personnel Only
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack: RBP0144
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 12
Battery Voltage (Each RBP) ( V ): 144
Compatible Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)
Max. EBM Quantity ( pcs ): 10
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
LCD Orientation: Rotatable LCD - Automatic, Rotatable LCD via Setting
Tiltable LCD Panel: 18°
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
HID Compliant USB Port(s): 1
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
Management Cable ( pcs ): USB Cable x1, Serial Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 720mm
Rack-mounted Dimensions: 433 x 86.5 x 685mm (Without the dimension of front panel)
Weight: 42kg
Certifications: CE, EAC, RCM
