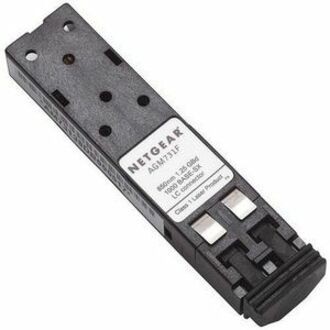

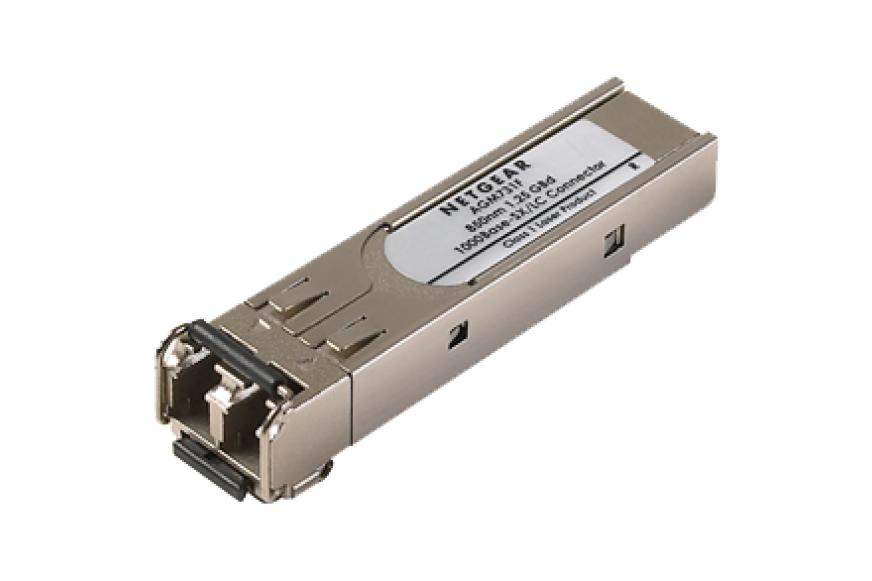

Netgear AGM731F 1000Base-SX SFP GBIC Module * Gigabit Ethernet short-reach fiber connectivity * LC duplex connector * Fits into SFP interfaces of all Fully Managed Switches * Fits into SFP interfaces of all Smart Switches * Fits into SFP interfaces of JGS524F * Drives Gigabit Ethernet up to 1,000 m distances with 50/125µm laser-optimized OM4 multimode fiber cables * Drives Gigabit Ethernet up to 550 m distances with 50/125µm laser-optimized OM3 multimode fiber cables * Drives Gigabit Ethernet up to 275 m distances with 62.5/125ìm OM1 multimode fiber cables
Specification
Form Factor: SFP (Small Form Factor Pluggable)
Standard: IEEE 802.3z 1000BASE-SX
Connector: LC Duplex (multimode)
Wavelength: 850 nm
Max Distance: 1000m (OM4), 550m (OM3), 275m (OM1)
Data Rate: 1.25 Gbps (1000 Mbps)
Fiber Type: Multimode (50/125µm or 62.5/125µm)
Operating Temperature: 0–70°C
Input Voltage: 3.3V
Power Consumption: 0.5W typical
Dimensions: 56.8 x 13.6 x 8.6 mm
Warranty: 5 years
Features: Full-duplex, hot-swappable, DOM/DDM support
