Full specification
Power Rating: 1700VA / 1350W
Input Voltage: 230V (161-276V ±4% with wide mode)
Output Voltage: 230V ±5%
Input/Output Frequency: 50/60Hz with automatic selection
Automatic Voltage Regulation: 14% boost, 12% buck
Output Waveform: Pure sine wave

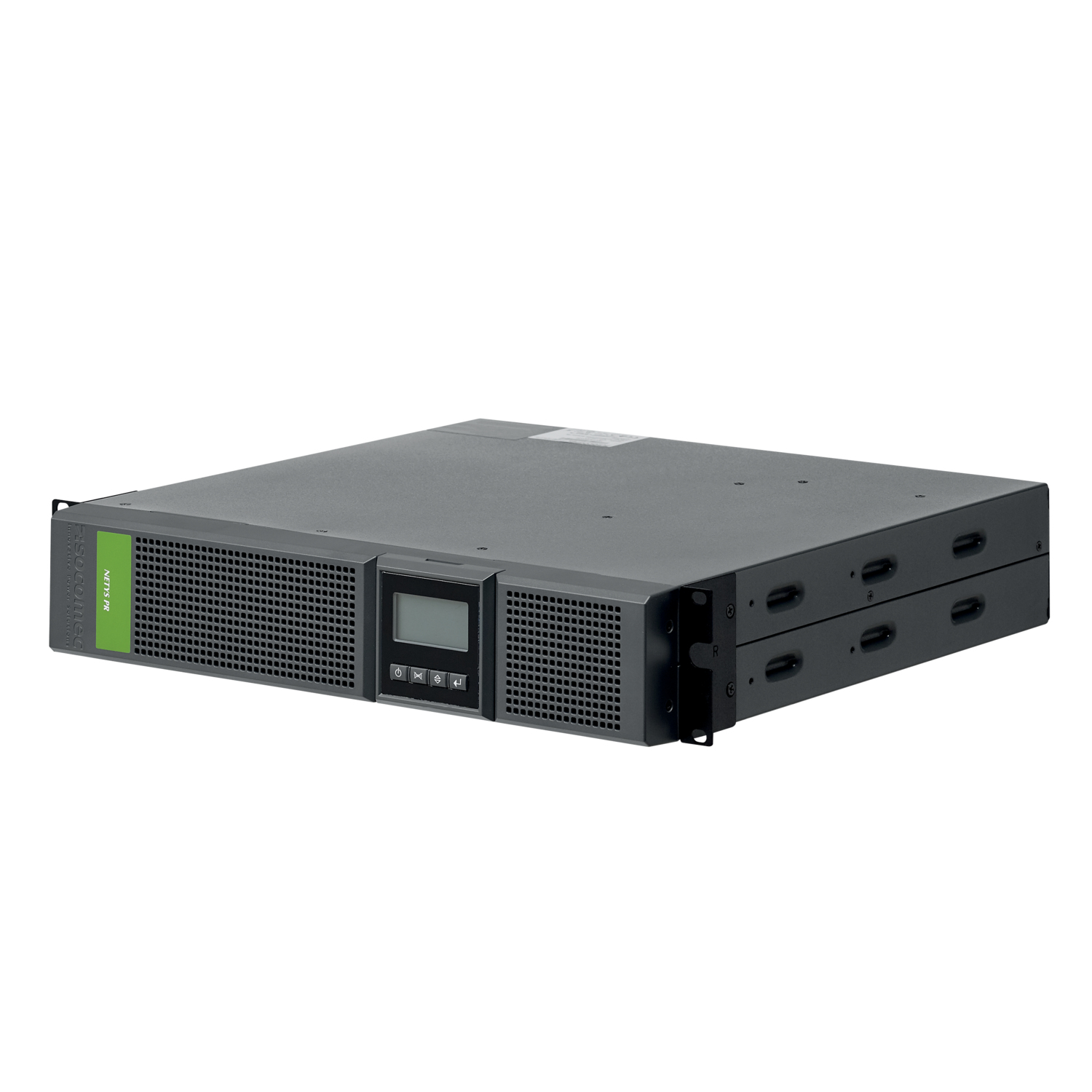

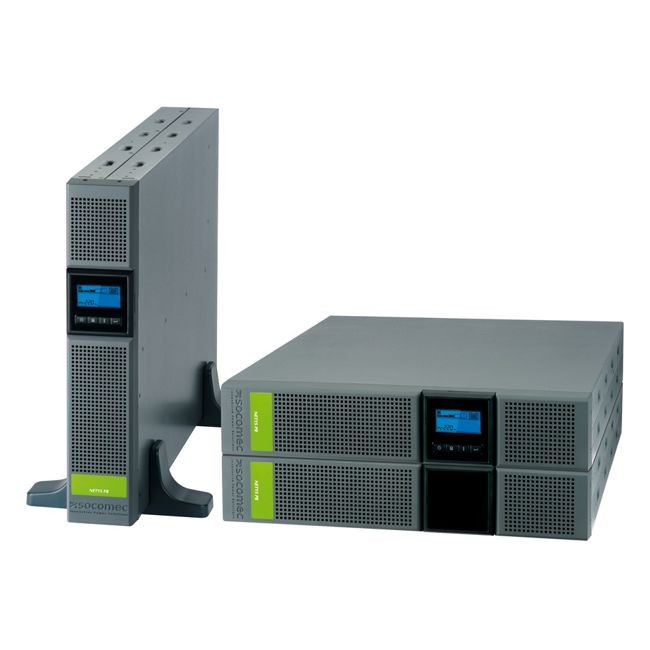

Form Factor: Tower/Rack convertible, 2U height (89mm)
Outlets: 8 × IEC 320 C13 sockets
Control Panel: LCD display with LED indicators
Communications: USB (HID), RS232, optional RJ45 for NTP
Battery: 3 × 12V/9Ah (36VDC) - hot-swappable
Backup Time: Approximately 6 minutes at full load
Protection: Overload protection (110% for 3 min normal, 30 sec battery mode), short-circuit protected
Warranty: 2 years
