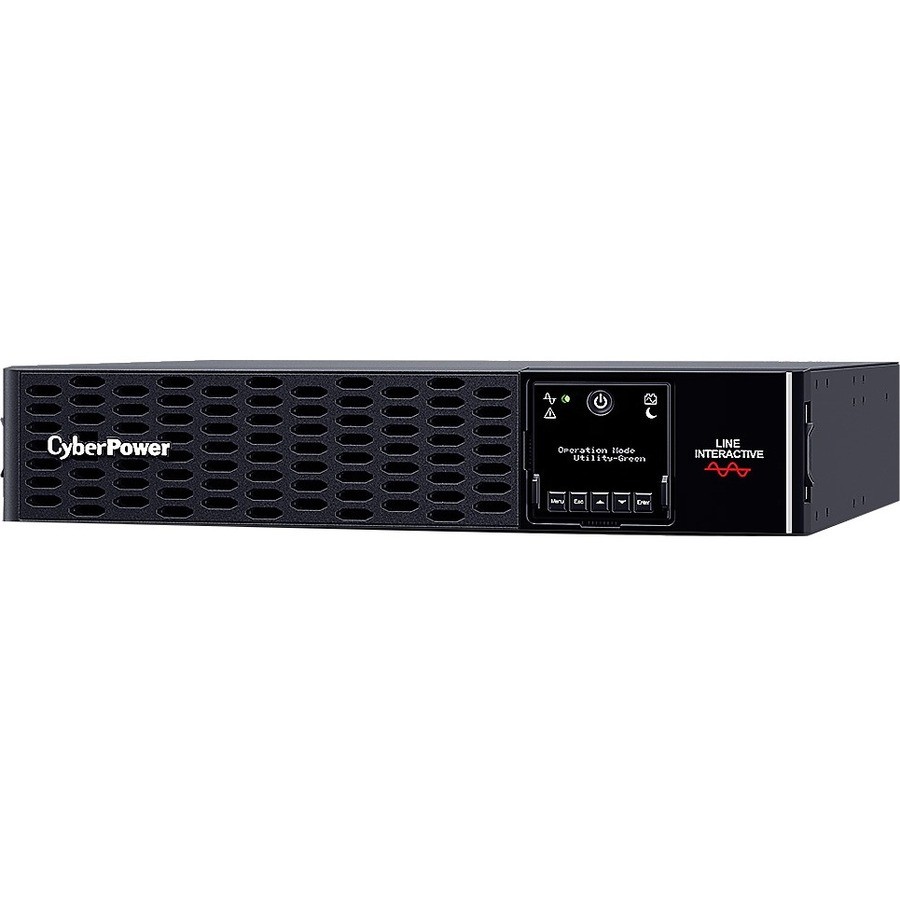

Name: CyberPower PRO Rack/Tower LCD 3000VA / 3000W (15A) 2U Line Interactive UPS - (PR3000ERTXL2U) - 3Yrs Adv. Rep. & 2 Yrs on Int. Battery
Brand: CyberPower
SKU: 1181158
Price: 2553 AUD
Availability: InStock

Description

*Model: PR3000ERTXL2U
*Capacity (VA/Watts): 3000VA / 3000W
*Energy-Saving Technology: Yes
--Input:
*Voltage Range:150Vac - 300Vac
*Frequency Range: 50Hz/ 60 Hz +/- 3Hz(auto sensing)
*Input Plug Type: IEC 320 C20
--Output:
*UPS Outlets: (1) IEC 320 C19
(9) IEC320 C13
*On Battery Output Voltage: Pure Sine Wave at 230Vac +/- 5%
*On Battery Output Frequency: 50Hz/60 Hz +/- 0.1Hz
* Transfer Time (Typical):4ms
*Overload Protection: Internal Current Limiting/Circuit Breaker
*AVR: Buck/ Boost/ Double Boost
--Surge Protection and Filtering:
*Surge Protection: Yes
*DSL/Phone/Fax/Modem protection: RJ11/RJ45(One In/One Out)
--Physical:
*Dimensions(H x W x D)(mm): 88 x 433 x 480
*Weight(kg):37
--Battery:
*Sealed Maintenance Free Lead Acid Battery:12V 9AH x 4
*User Replaceable: Yes
*Typical Recharge Time: 6 Hours
--Runtimes:
*Half-load / Full-load (mins):8/3
--Status I

Tech specs

Power	3000VA

Full specification

Specifications:

Phase: Single Phase

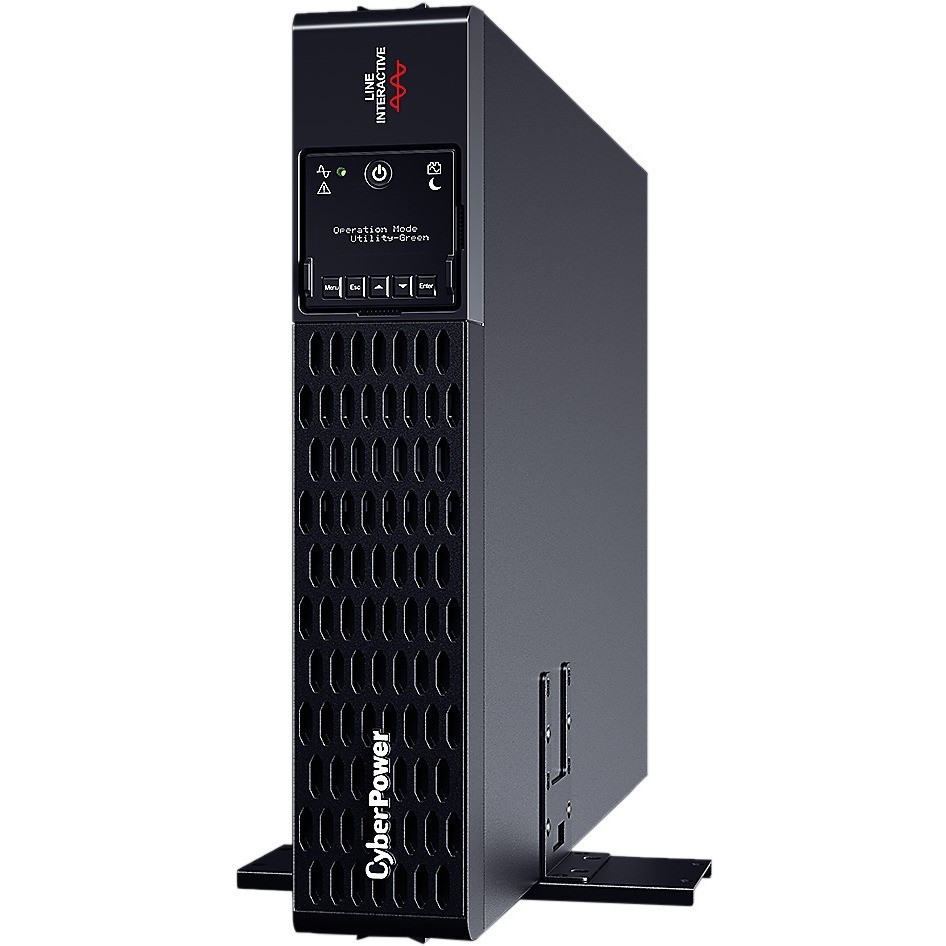

Form Factor: Rackmount, Tower
UPS Topology: Line-interactive
Energy Saving Technology: GreenPower UPS Bypass Technology
Energy Star Qualified: Yes
Active PFC Compatibility: Yes
Nominal Input Voltage ( Vac ): 220 | 230 | 240
Input Voltage Range ( Vac ): 159 ~ 288
Adjustable Voltage Range ( Vac ): 151 ~ 302 Vac
Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
Input Frequency Detection: Auto-sensing
Rated Input Current ( A ): 16
Input Connector Type: IEC C20
Power Cord Length (m.): 3
Output Capacity (Watts): 3000
On Battery Waveform: Pure Sine Wave
On Battery Voltage(s) ( Vac ): 220 ± 5% | 230 ± 5% | 240 ± 5%
On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
Power Factor: 1
Automatic Voltage Regulation (AVR): Double Boost, Single Buck
Overload Protection: Internal Current Limiting, Circuit Breaker

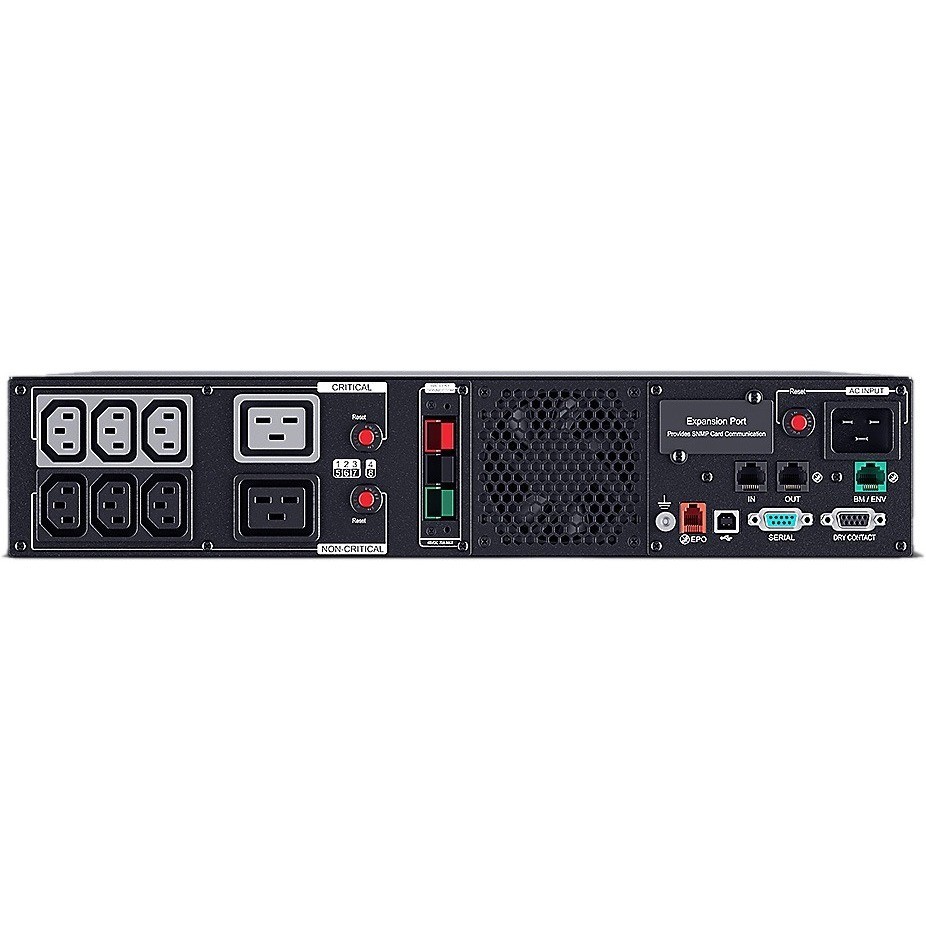

Outlet(s) - Total: 8
Outlet Type: IEC C13 x 6 | IEC C19 x 2
Outlet(s) - Battery & Surge Protected: 8
Outlet(s) - Critical Load (CL): 4
Outlet(s) - Non-Critical Load (NCL): 4
Typical Transfer Time ( ms ): 4
Runtime at Half Load ( min ): 7.1
Runtime at Full Load ( min ): 1.7
Typical Recharge Time ( Hours ): 3
Start On Battery: Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Battery Cartridge: RBP0129
RBP Quantity ( pcs ): 1
Battery Quantity (Each RBP) ( pcs ): 4
Compatible Extended Battery Module (EBM): BP48VP2U02 (Built-in Charger)
Max. EBM Quantity ( pcs ): Unlimited
Surge Suppression ( Joules ): 2430
EMI/RFI Filtration: Yes
Network Protection RJ45: 1-in, 1-out
LCD Orientation: Rotatable LCD – Manual
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication, Language
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Yes
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat
Management Cable ( pcs ): Power Cord x4, USB Cable x1, Serial Cable x1, EPO Cable x1
Ethernet Data Transmission Speed: Up to 1Gbps
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
PowerPanel Cloud Service: Yes - 90 Days Free Trial
Enclosure Construction: Metal
Rackmount Rail: Yes
Rackmount Ears: Yes
Dimensions: 433 x 86.5 x 500mm
Weight: 32.8kg
Certifications: CE, FCC Class A, UL, cUL, RCM, VCCI, UKCA
