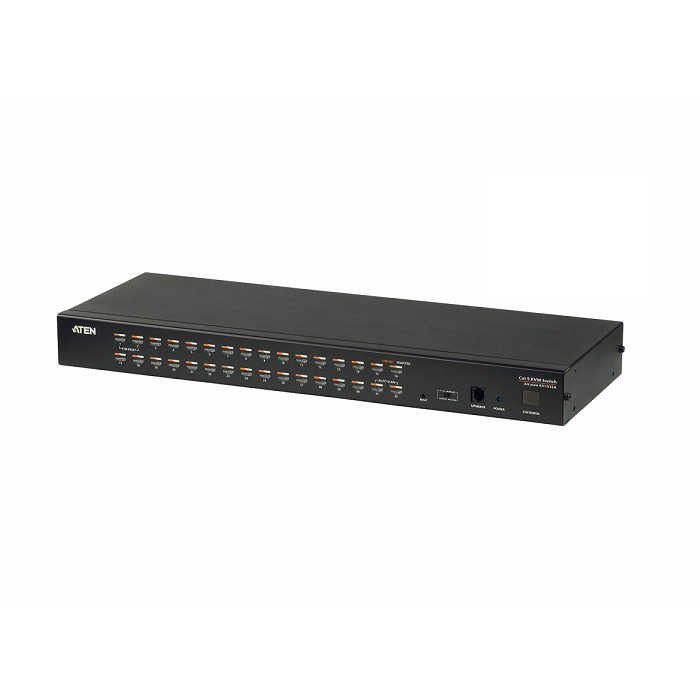

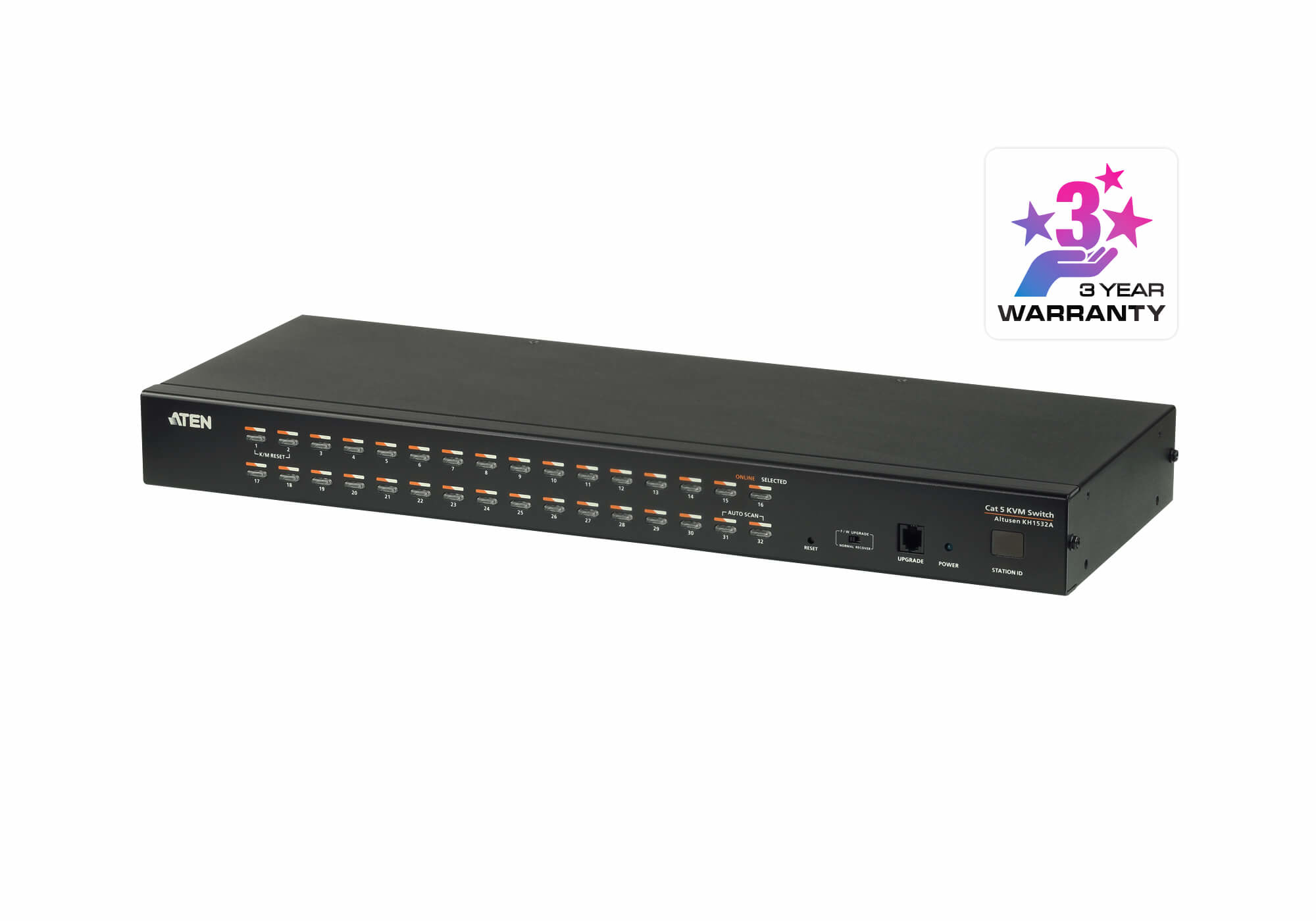

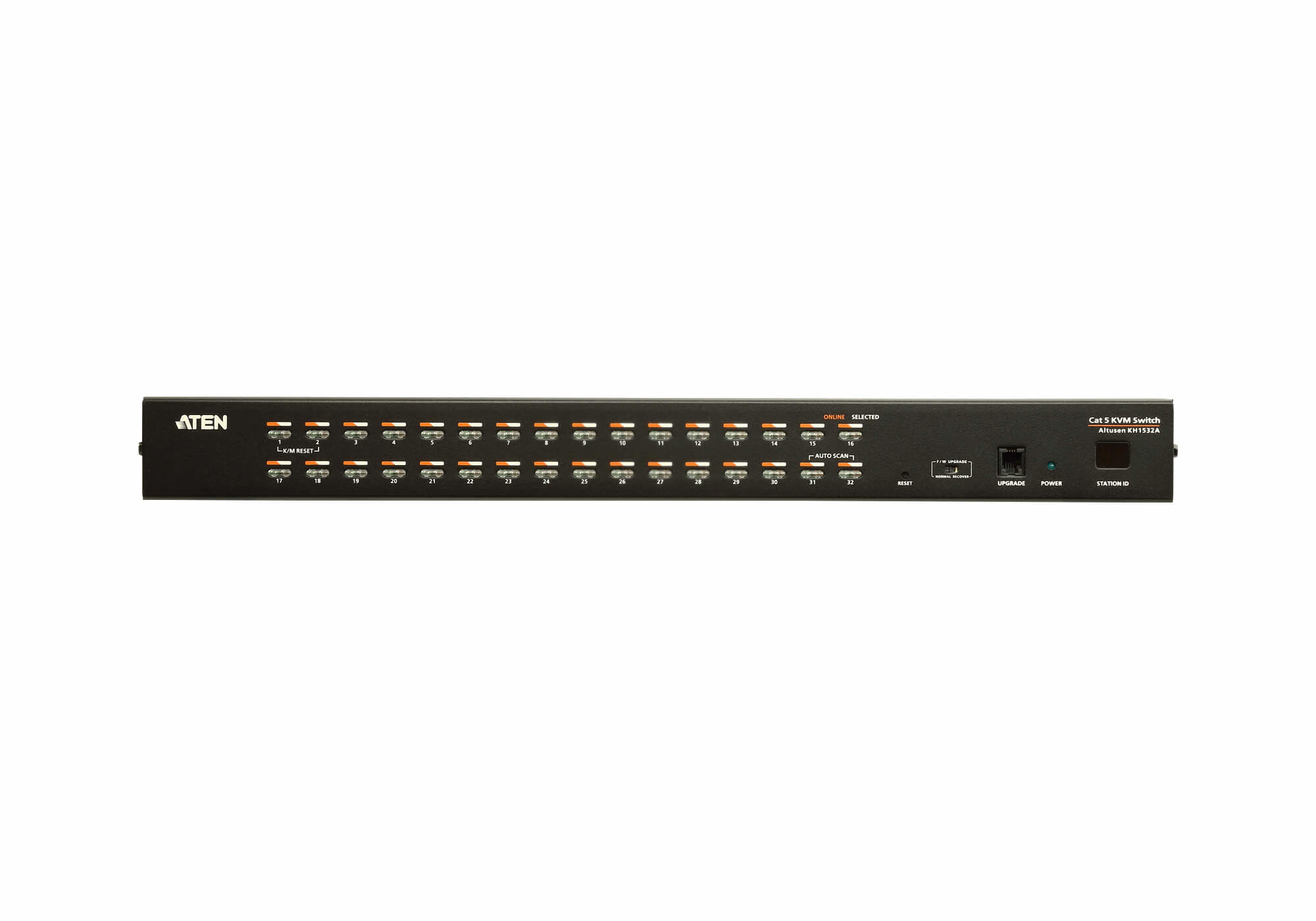

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 32 PORT WITH DAISY-CHAIN PORT

The KH1532A KVM switches are control units that allow IT administrators to access and control multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can take control of up to 32 (KH1532A) computers. By daisy chaining up to 31 additional switches, as many as 1024 computers can be controlled from a central KVM console. These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently. ID, port name, OS, keyboard language, and more. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters. Other advantages found with these switches includes Full HD video quality and the ability to extend the distance to the servers to up to 50 m* at a resolution of 1280 x 1024. A KH1532A installation provides one of the best and most economical solutions ATEN has to offer the SMB market. There is no better way to save a data center time, space, and money than with a KH1532A KVM switch.

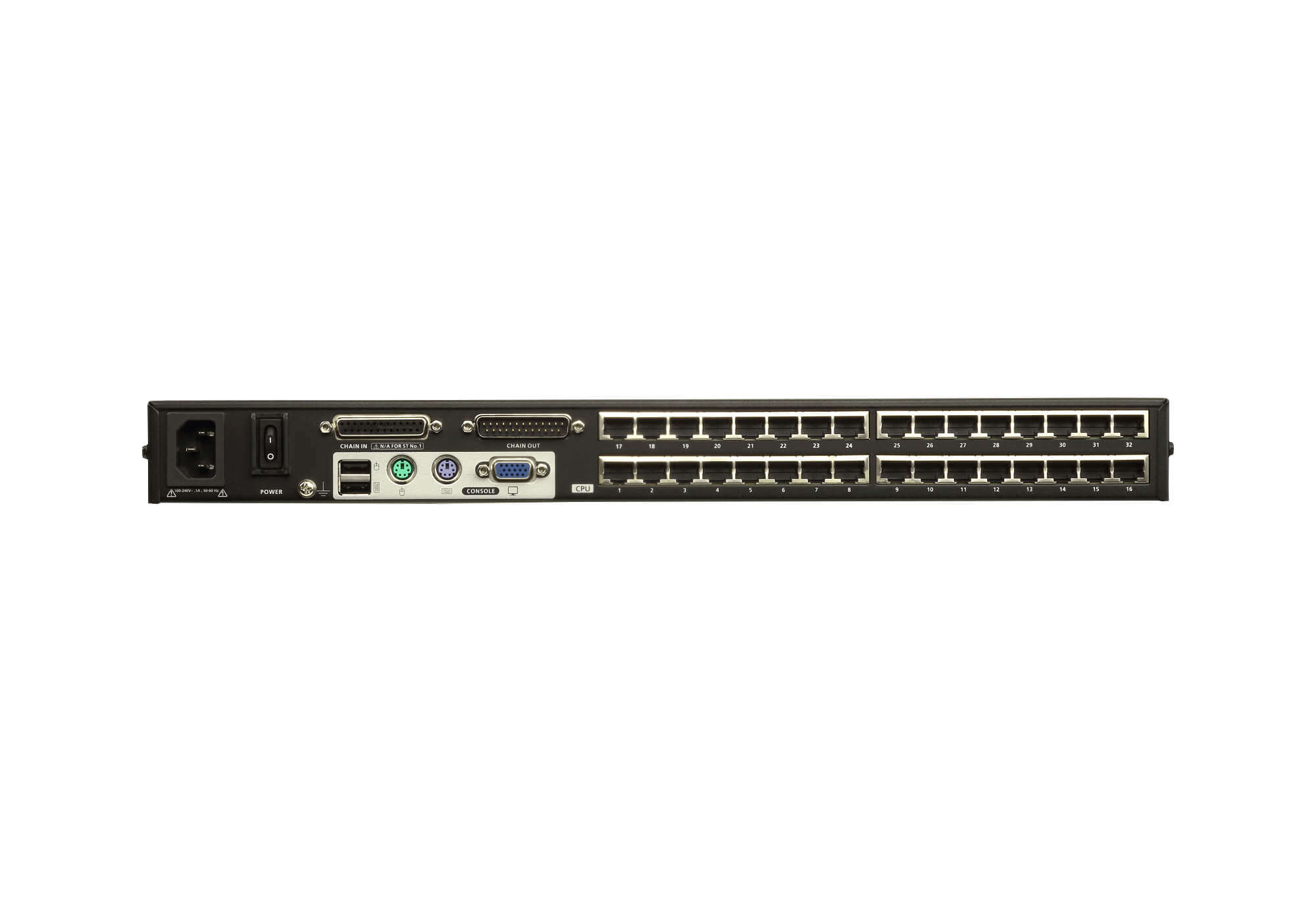

Console ports: 2 x USB Type A Female, 1 x 6-pin Mini-DIN Female (Purple), 1 x 6-pin Mini-DIN Female (Green), 1 x HDB-15 Female (Blue) HD type: Full HD; Maximum resolution: 1920 x 1200 pixels Video resolutions: 1920 x 1200 @60Hz up to 30 meters, 1600 x 1200 @60Hz up to 40 meters, 1280 x 1024 @75Hz up to 50 meters KVM Ports: 32 x RJ-45 Female Daisy Chain Ports: 1 x DB-25 Female (Black), 1 x DB-25 Male (Black) Rack capacity: 1U; Housing material: Metal Power source: AC; Input voltage: 100 - 240 V; AC input frequency: 50 - 60 Hz Power Consumption: 110V/4.6W; 220V/4.8W Product colour: Black Features: Supports multiple user accounts (up to 10 user and 1 administrator), two-level password security, three port selection methods (Manual, Hotkey, OSD), Auto Scan mode, Broadcast Mode, Firmware Upgradeable
