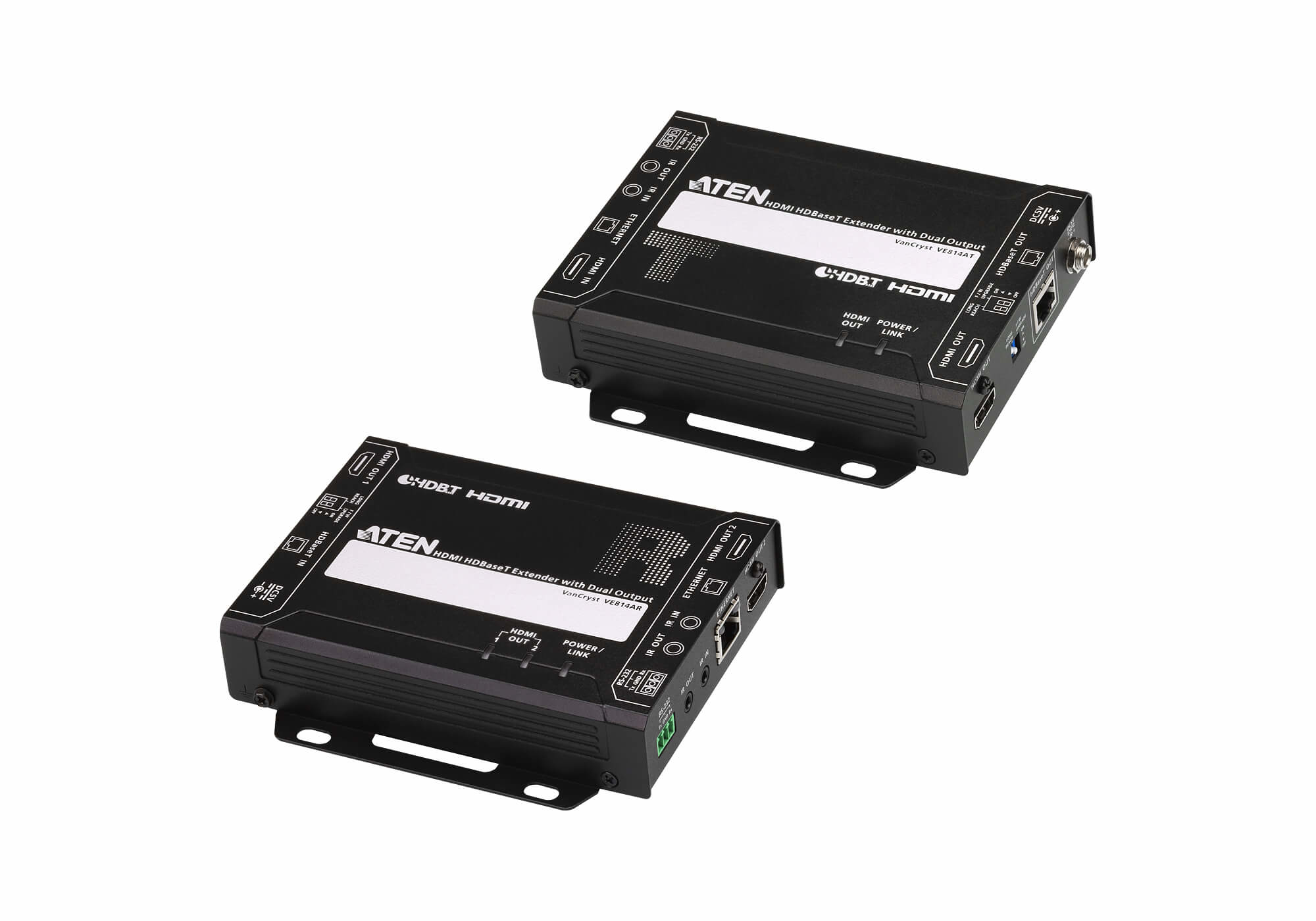

ATEN VE814A is an HDBaseT Video Extender capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, featuring dual synchronous outputs to transmit video signal to two remote displays and one at the local side.
Tech specs
Resolution
4K
Full specification
HDBaseT video extender with dual outputs
4K video up to 100 m (Cat 6a) or 70 m (Cat 5e/6)
1080p up to 150 m in Long Reach Mode
HDCP 2.2 compliant
10.2 Gbps maximum data rate
Supports 3D and Deep Color
RS-232 and IR signaling pass-through
Ethernet pass-through port
1 HDMI input, 1 HDMI output (local)
Rack-mountable transmitter unit
Dimensions: 5.35" W x 3.98" D x 1.14" H
Taiwan manufactured
