ATEN USB DVI HDBASET 2.0 EXTENDER WITH RS232

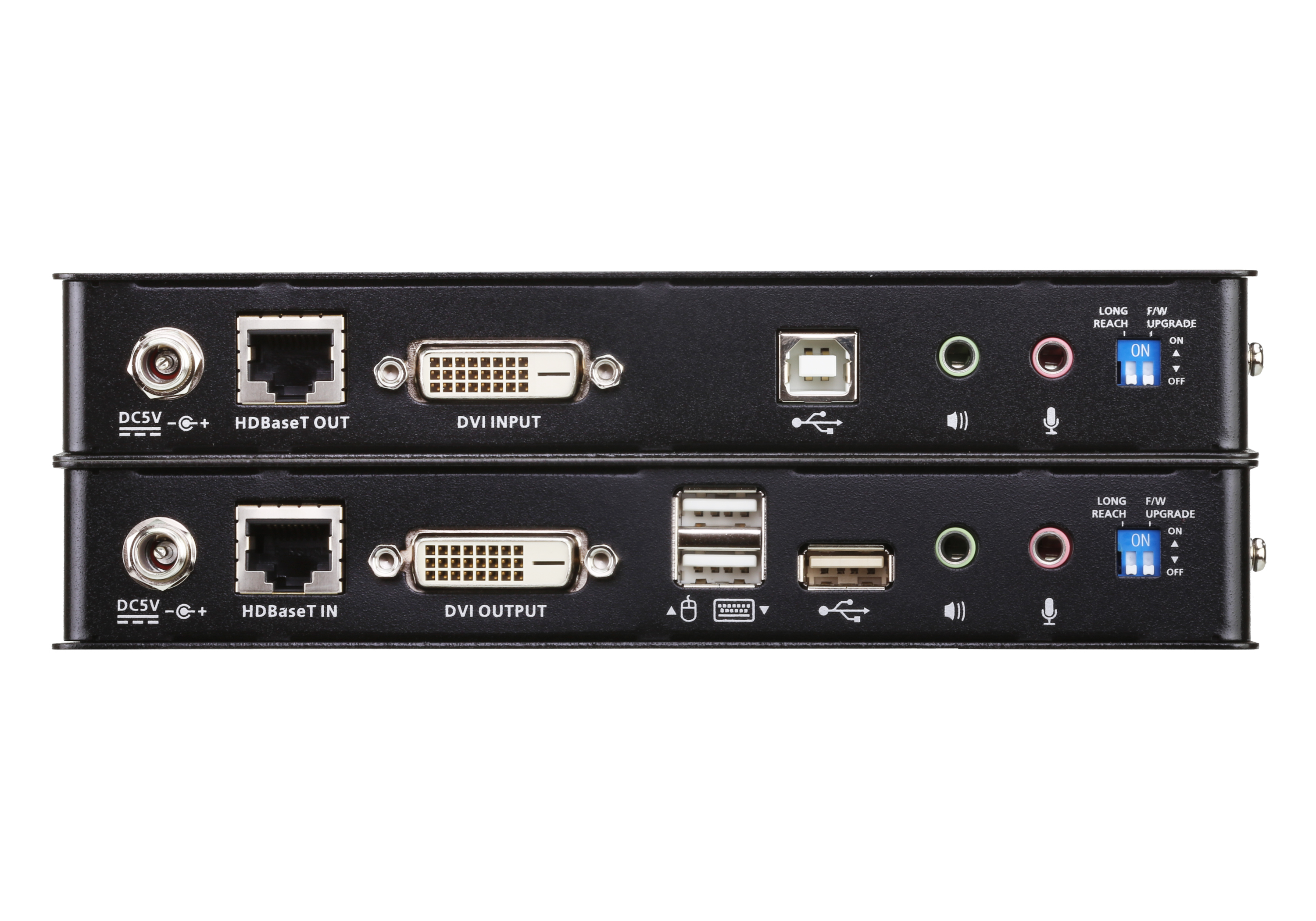

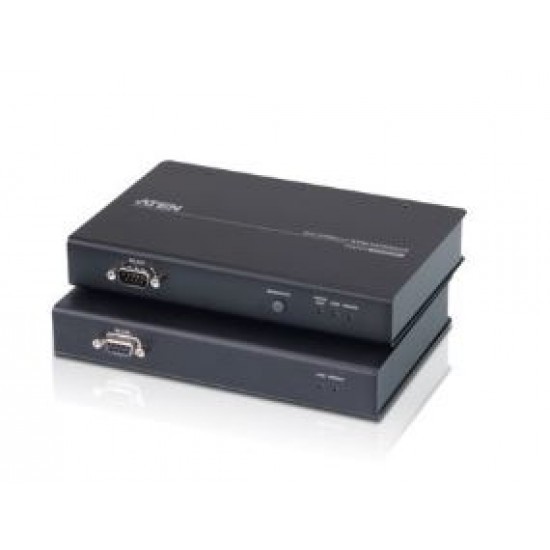

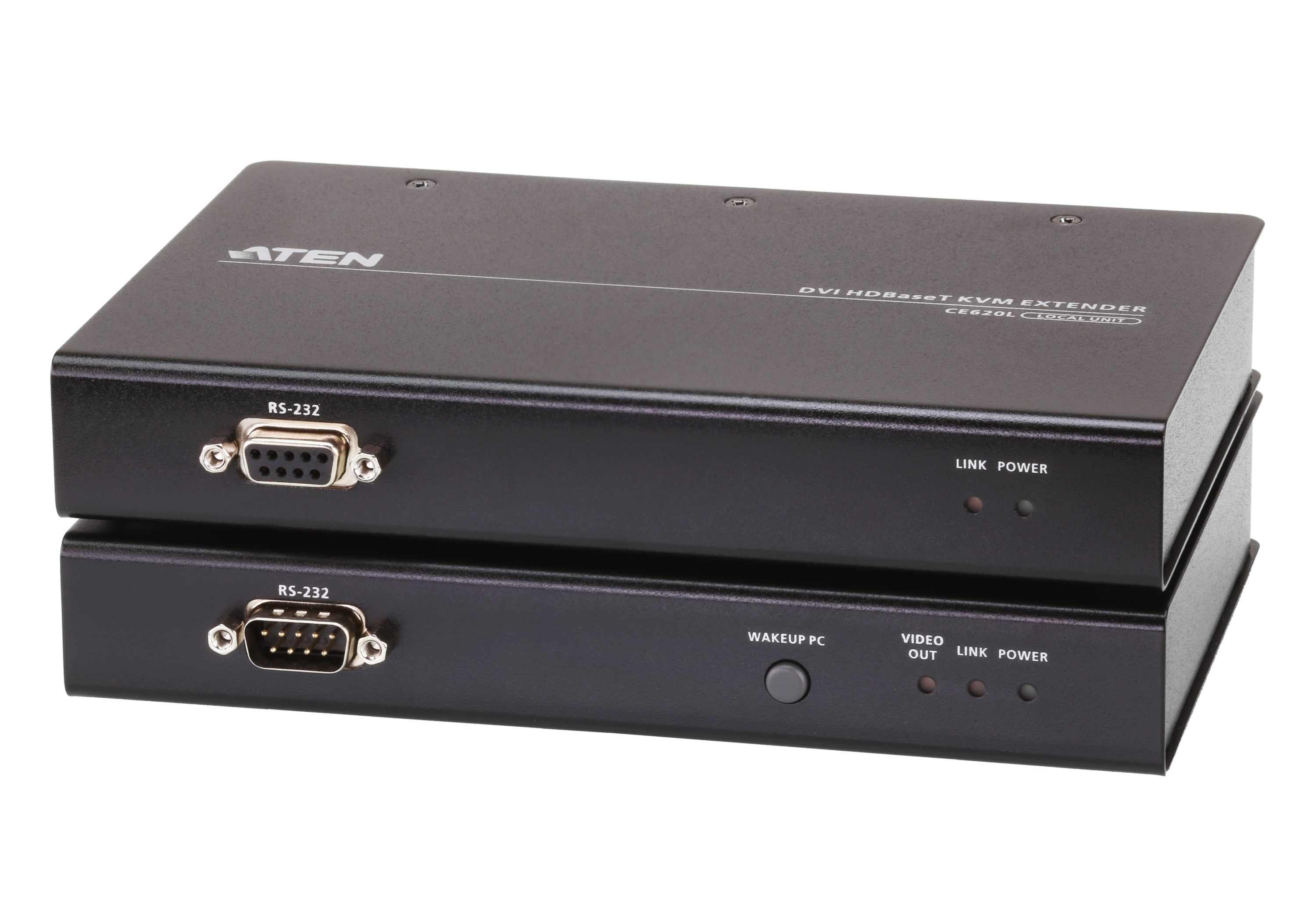

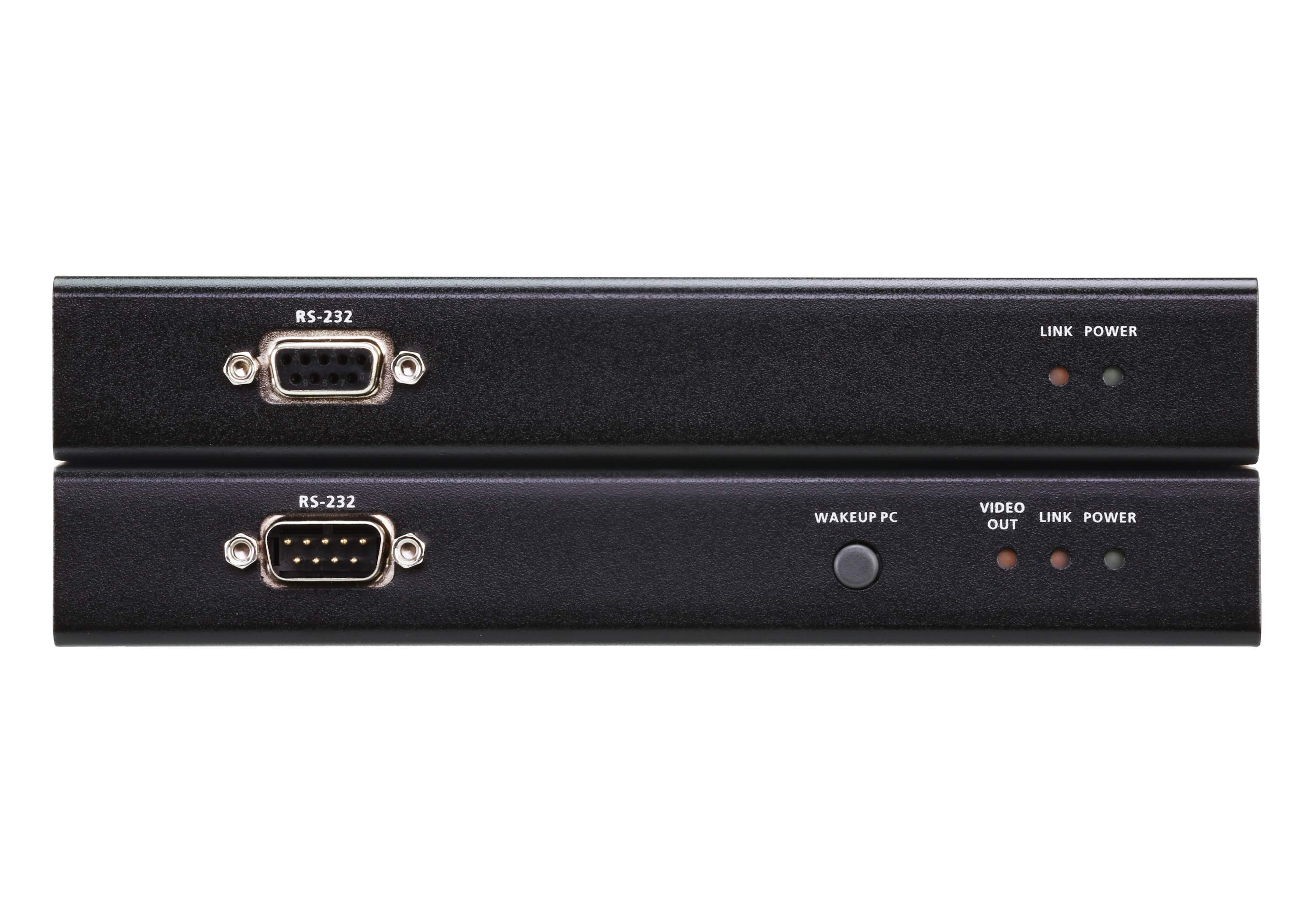

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required - in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

HDBaseT 2.0 connectivity technology Video: DVI, up to 1920x1200@100m (standard) / 1920x1080@150m (long reach) Audio: PCM 2-channel digital USB: USB 2.0 (integrated ports) Serial: RS-232 Cable: Single Cat5e/6 or Cat6/6a Maximum Distance: 100m (standard mode) / 150m (long reach mode) ESD Protection: 8KV contact / 15KV air Package: Local unit (CE620L), Remote unit (CE620R), KVM cable (1.8m), 2x power adapters, mounting kits, foot pads HDCP: Not supported Features: EDID buffer, PC wakeup function, enhanced bit error detection/correction, long reach mode switch
