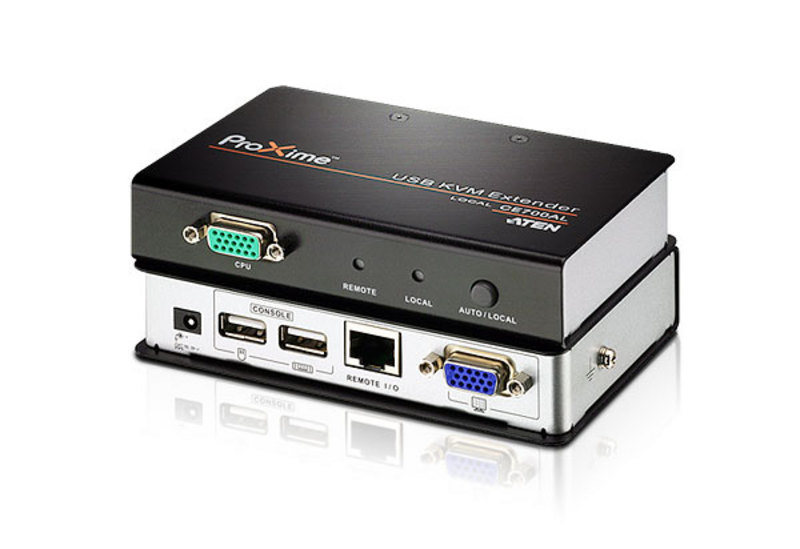

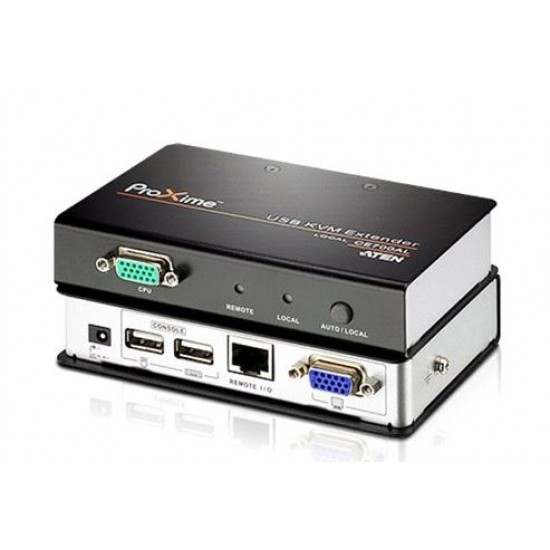

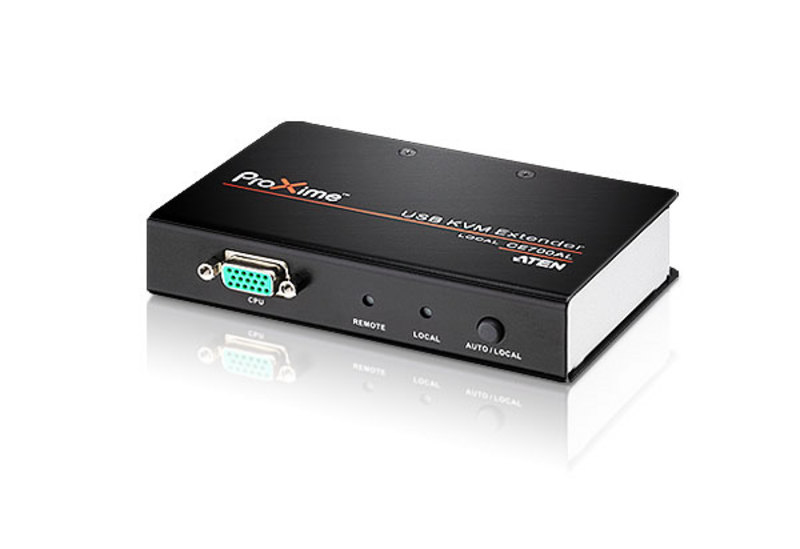

ATEN USB VGA CAT 5 KVM EXTENDER

Aten CE-700A - USB KVM Extender The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse). The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

Console extender for USB keyboard, mouse and VGA monitor Maximum range: 150m (500 feet) with Cat 5e cable Video: VGA, SVGA, SXGA, UXGA, WUXGA resolutions Maximum resolution: 1920×1200@60Hz (30m), 1600×1200@60Hz (100m), 1280×1024@60Hz (150m) Connectors: 1× HDB-15 (VGA), 2× USB-A, 1× RJ-45, 1× SPHD-17 (KVM) Dual console operation: Local and remote access via pushbutton Protection: 8KV/15KV ESD (contact/air voltage), 2KV surge protection Power: DC 5.3V/2.31W (local), DC 5.3V/2.84W (remote) Operating temp: 0-50°C Rack mountable Includes: CE700AL (local) and CE700AR (remote) units, 2× power adapters, USB KVM cable, grounding wires, rack mount kit
