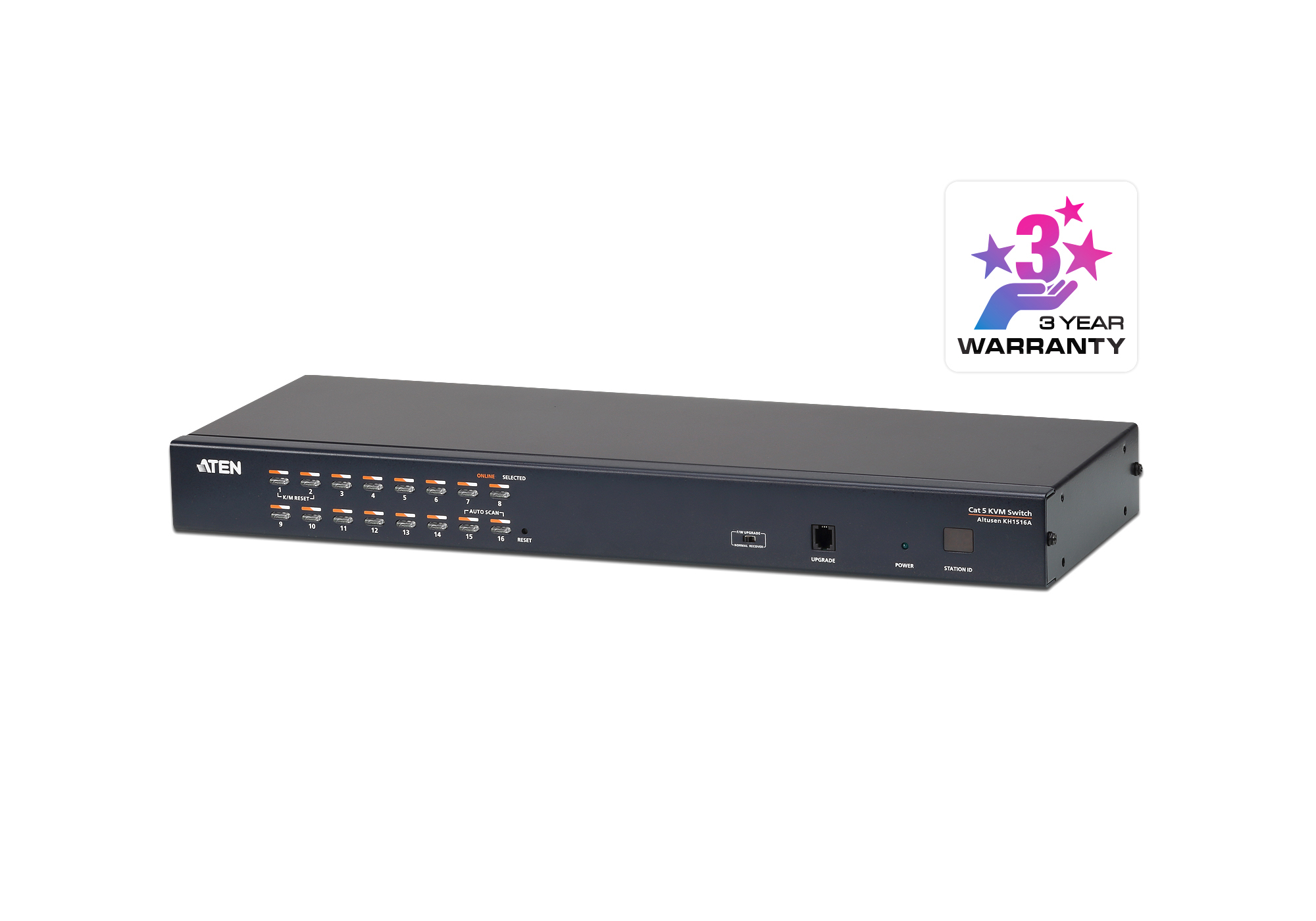

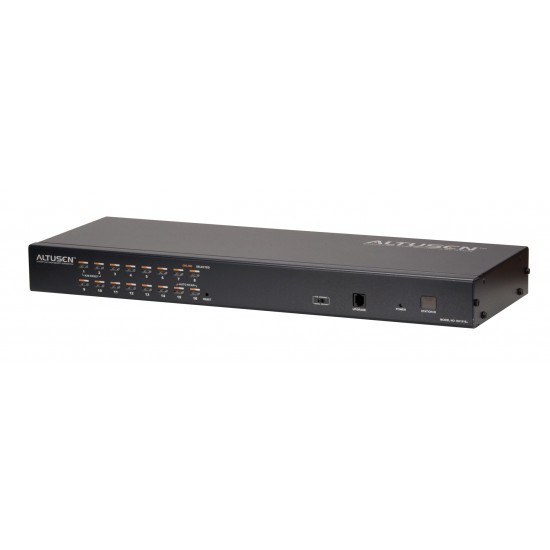

ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 16 PORT WITH DAISY-CHAIN PORT

The KH1516 KVM Switch is a control unit that allows access to multiple computers from a single KVM console. The KH1516 features RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Single Compensation (ASC), signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup, the KH1516 permits any combination of computer and serial devices to coexist on the installation.

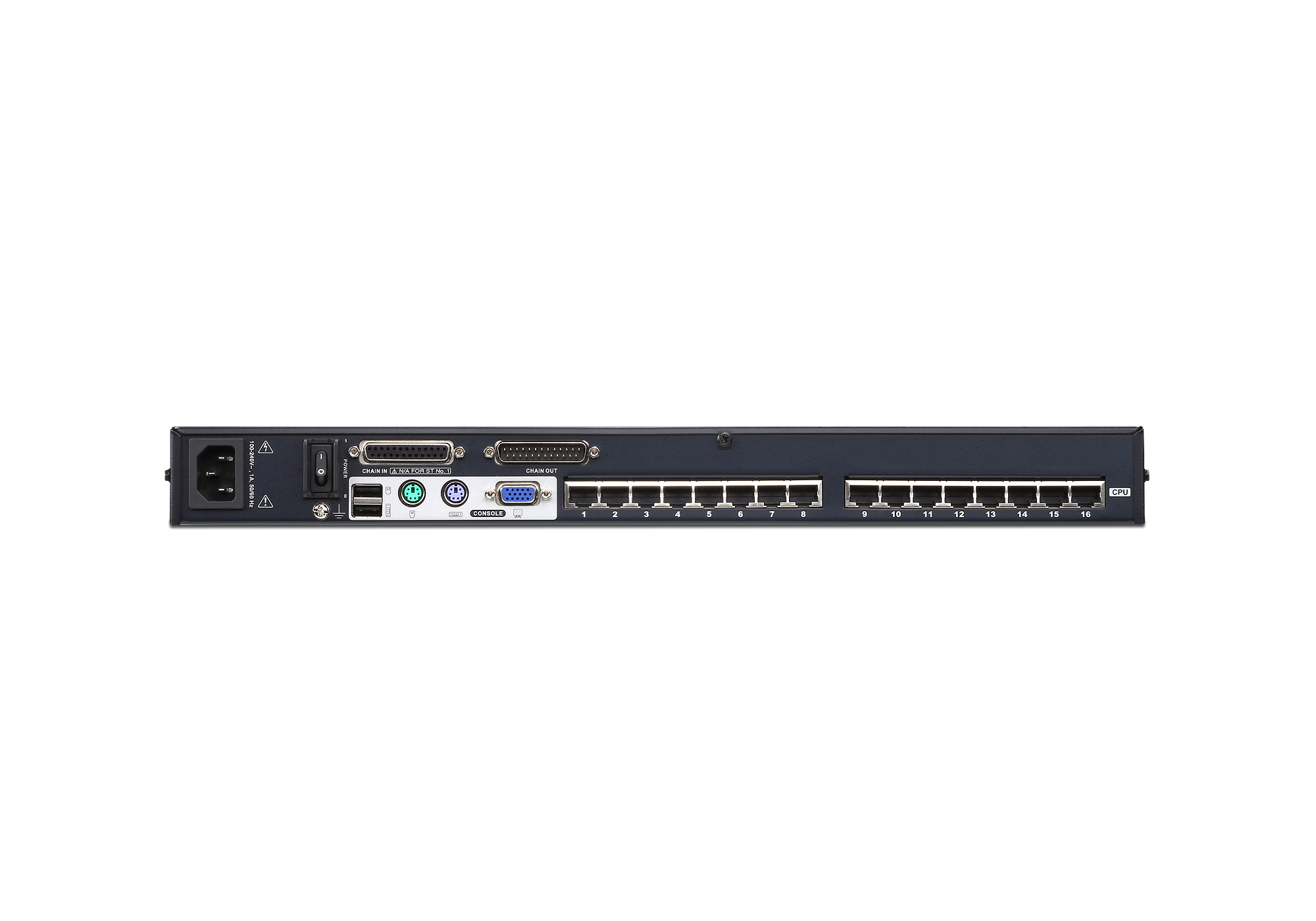

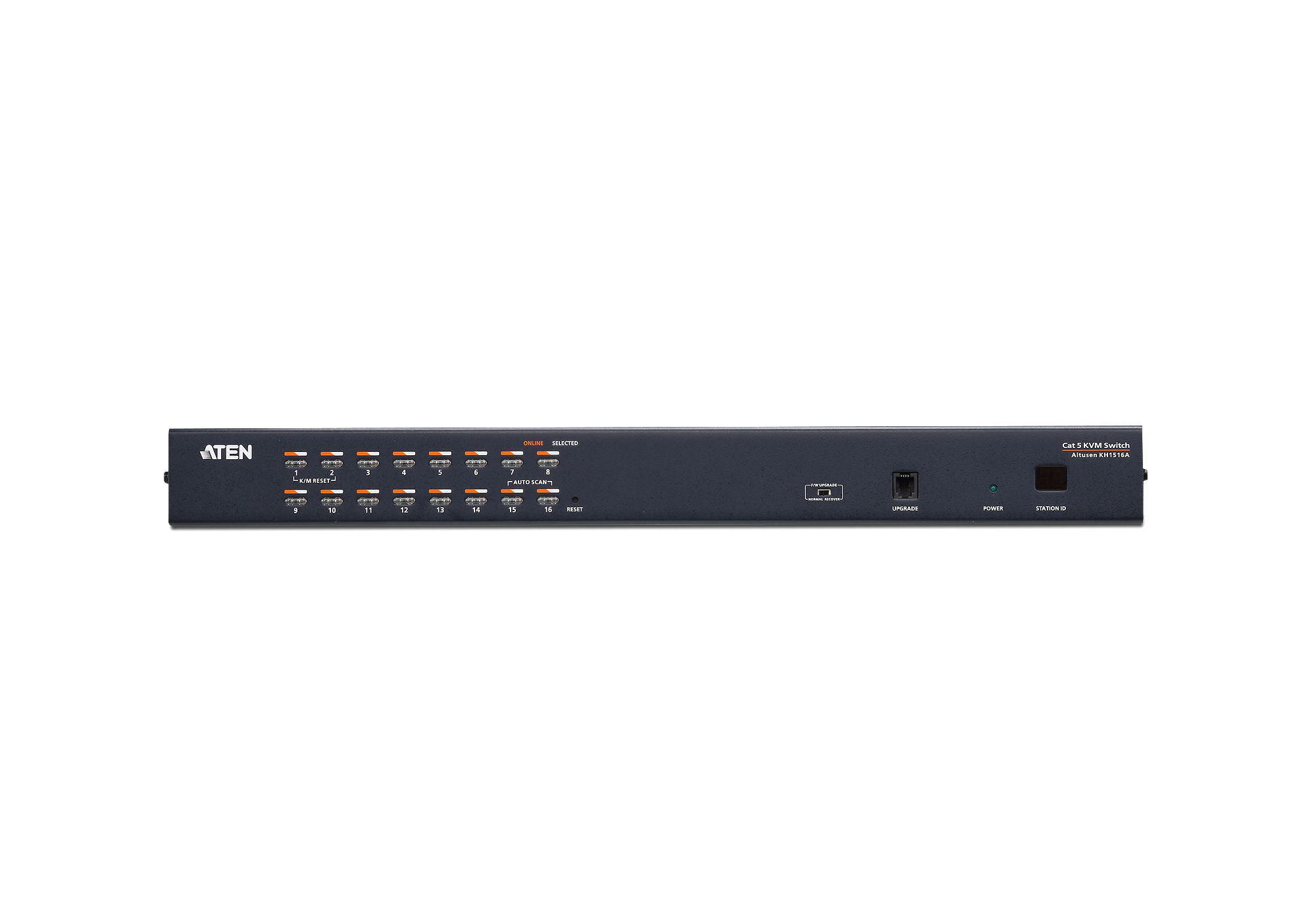

16 ports (RJ-45 Cat 5/5e/6 connections) Maximum console distance: 40m at 1600×1200@60Hz; 50m at 1280×1024@75Hz; 30m at 1920×1200@60Hz Video resolution support: up to 1920×1200@60Hz (with KA71XX or KA75XX adapter) Daisy-chain capable: up to 31 additional units (512 computers total) Console ports: 1×HDB-15 Video, 1×PS/2 Keyboard, 1×PS/2 Mouse, 2×USB Daisy-chain ports: 1×DB-25 Female (In), 1×DB-25 Male (Out) Port selection: Front panel pushbuttons, Hotkey, multi-language OSD Platform support: Windows, Linux, Mac, Sun, Serial Power: 100–240 VAC, 50/60Hz, 1A (27W consumption) Operating temperature: 0–50°C Dimensions: 19" rack-mount 1U form factor Weight: 2.75 kg
