ATEN 1-CONSOLE HIGH DENSITY CAT 5 KVM 8 PORT WITH DAISY-CHAIN PORT

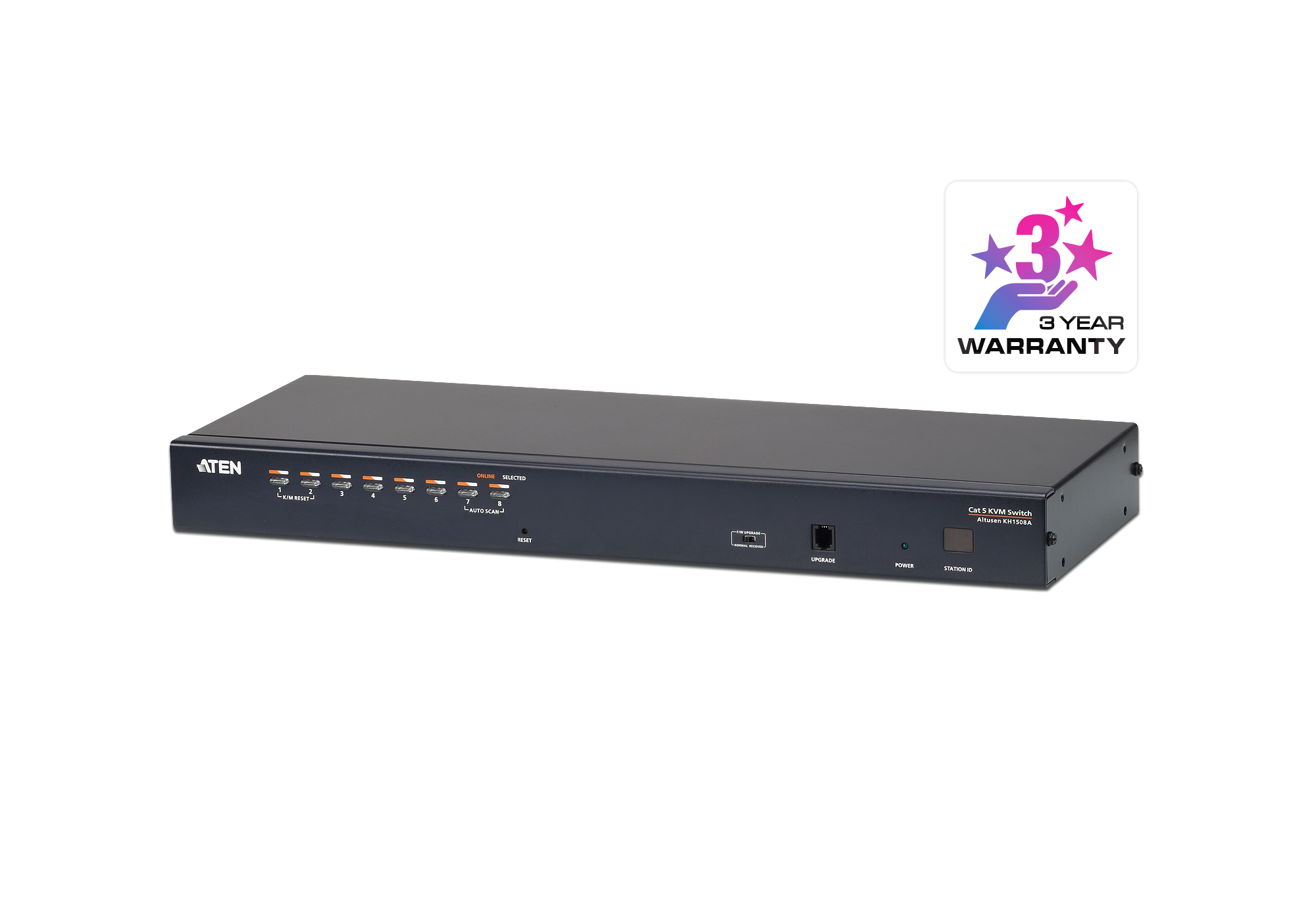

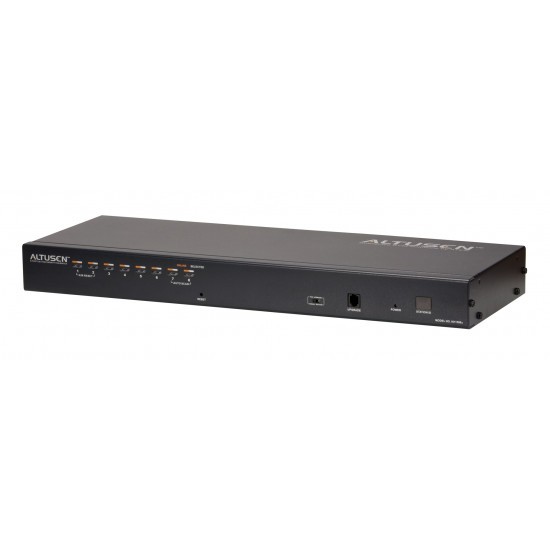

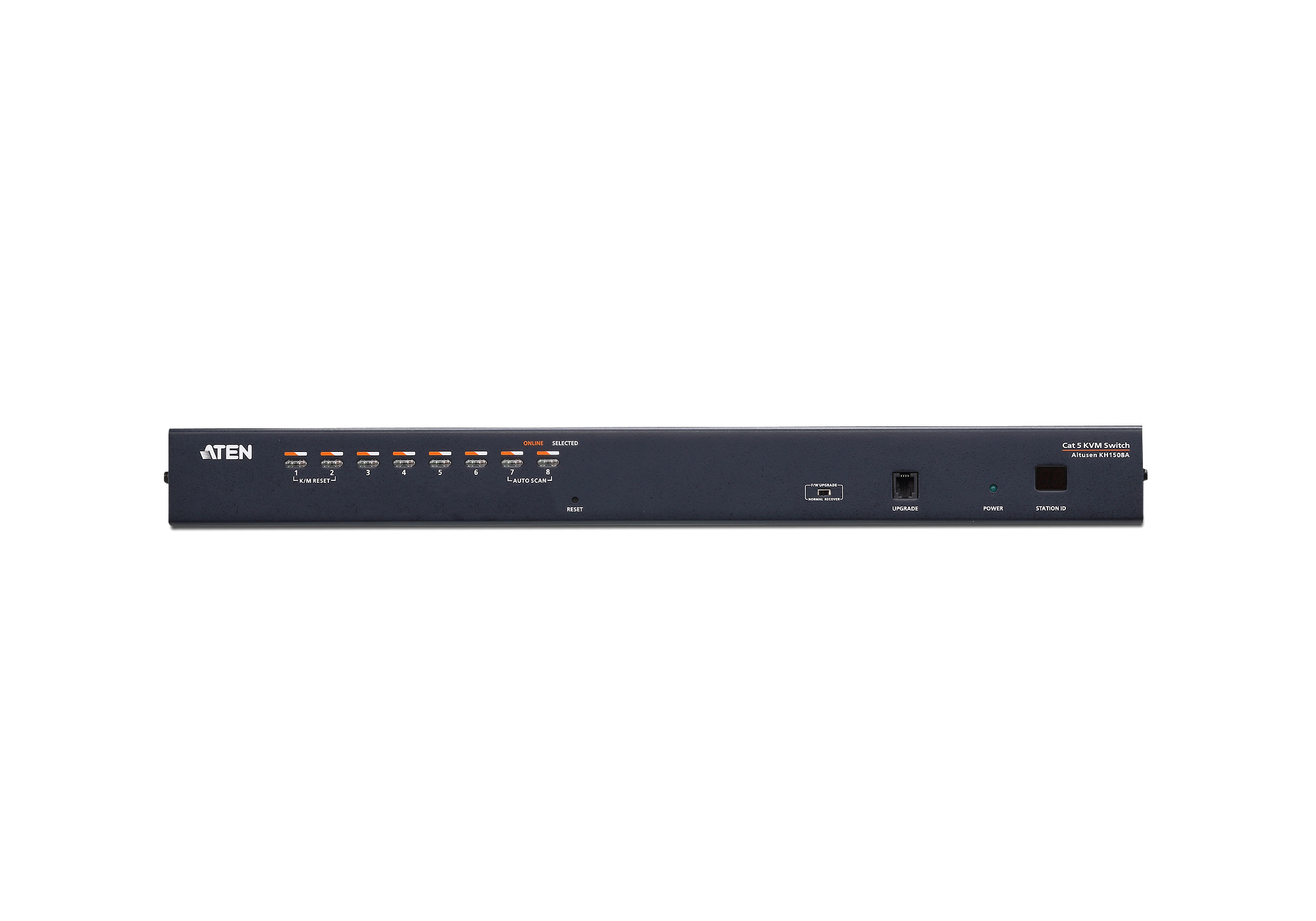

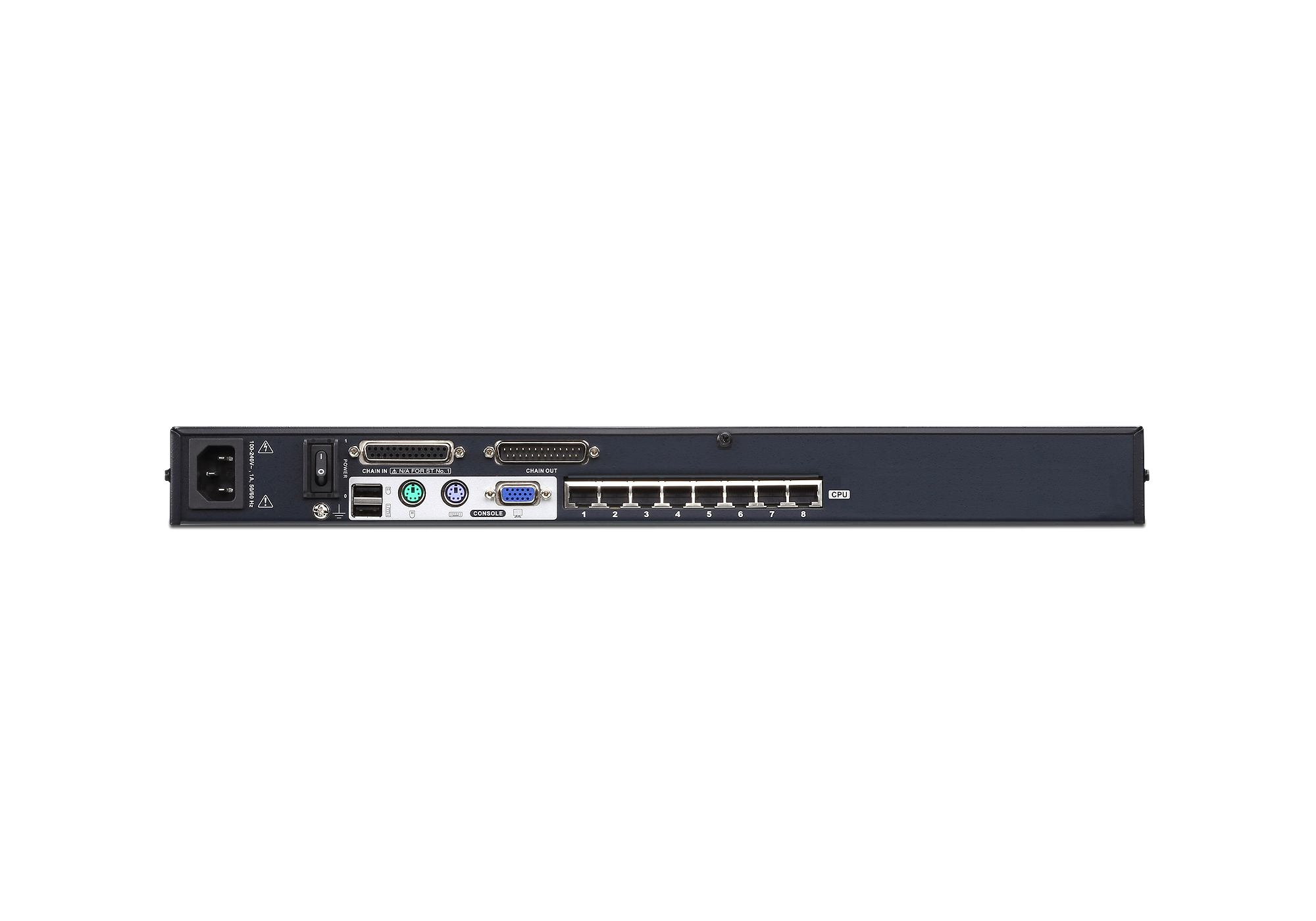

The KH1508 KVM Switch is control unit that allow access to multiple computers from a single KVM console. The KH1508 features RJ-45 connectors and Cat 5 cable to link to the computers. Combined with Auto Single Compensation(ASC), signals can travel up to 40 meters and still maintain high video resolution. Utilizing PS/2 and USB KVM Adapter Cables for the final linkup, the KH1508 permits any combination of PCs,Macs,Sun computers,and serial devices to coexist on the installation.

8 Computer ports (RJ-45) 1U Rackmount housing Supports resolutions up to 1920x1200@60Hz (30m), 1600x1200@60Hz (40m), 1280x1024@75Hz (50m) Console: PS/2 and USB compatible (keyboard, mouse, monitor) Daisy-chain: 31 additional units (256 total computers) 10 user accounts + 1 administrator Power: 100-240 VAC, 50/60Hz, 1A, 25W consumption Operating temperature: 0-50°C Supports VGA, DVI, HDMI, DisplayPort via KVM adapter cables Three port selection methods: pushbutton, hotkey, OSD Auto Scan and Broadcast modes
