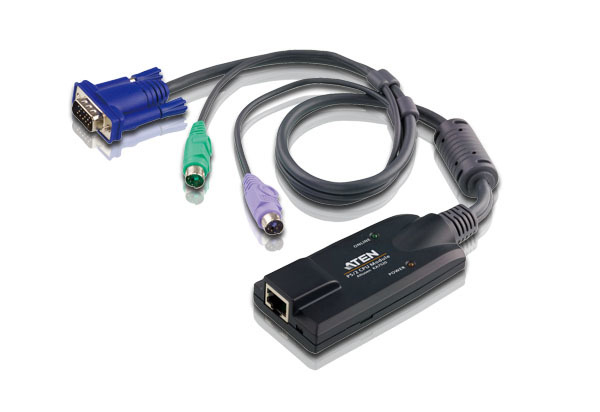

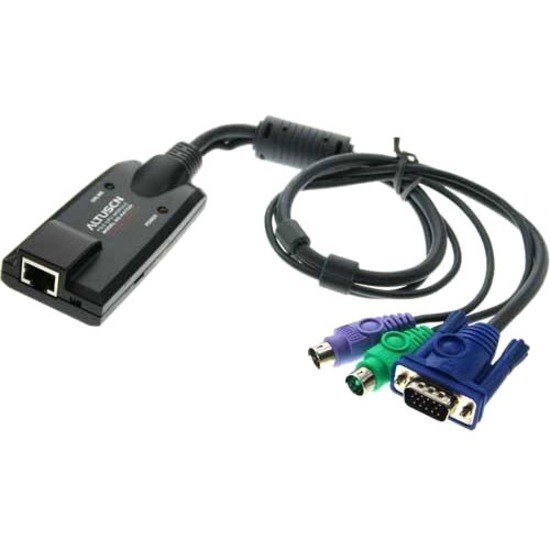

The KA7520 PS/2 KVM Adapter Cable connects the KVM switch to the video, PS/2 mouse and PS/2 keyboard ports of the target computer. With its small form factor and light weight design, it fits perfectly into most of the rack-mount or desktop servers.
Keyboard and mouse emulation - keeps your server functioning smoothly when it is disconnected from the switch's KVM port or relocated to different KVM port
Superior video quality - supports resolution up to 1920 x 1200 (Reduced blanking)*
Hot pluggable - add or remove computers without having to power down the switch.
Connectors
Link 1 x RJ-45 Female
Computer 2 x PS/2 Male
1 x HDB-15 Male
LEDs
Online 1 (Green)
Power 1 (Orange)
Physical Properties
Housing Plastic
Weight 0.14 kg ( 0.31 lb )
Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm
(3.54 x 1.69 x 0.86 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Connector Link: 1x RJ-45 Female
Connector Computer: 2x PS/2 Male, 1x HDB-15 Male (VGA)
LED Online: 1x Green
LED Power: 1x Orange
Housing Material: Plastic
Weight: 0.14 kg
Dimensions (L x W x H): 9.00 x 4.30 x 2.18 cm
Maximum Video Resolution: 1920 x 1200 (Reduced blanking)*
Video Support Distance: Up to 30m at 1920x1200, up to 40m at 1600x1200
Keyboard/Mouse Emulation: Yes
Hot Pluggable: Yes
Firmware Upgrades: Lifetime support
*Note: 1680 x 1050 and 1920 x 1200 resolutions not supported by KA7xxxx series at 40m distance
