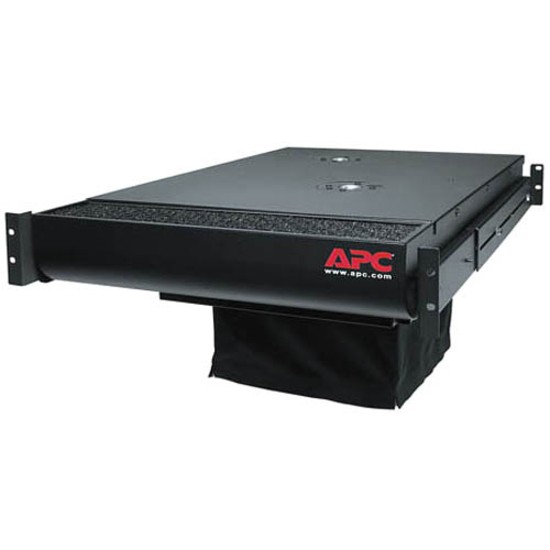

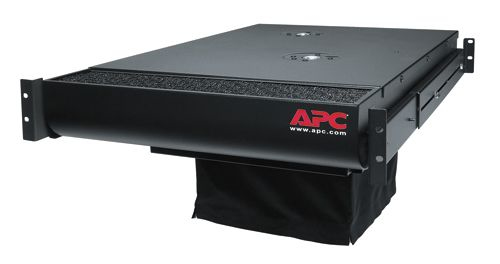

The APC ACF002 is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure, preventing the conditioned air from mixing with warmer room air and minimizing temperature differences between the top and bottom of the enclosure. It is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW.
Maximum Air Flow: 420 CFM
Power Consumption: 230 W
Input Voltage: 208 V AC, 230 V AC
Height: 3.5"
Width: 16.6"
Depth: 29"
Form Factor: 2U Rack-mountable
Color: Black
Dual fans with fault tolerance

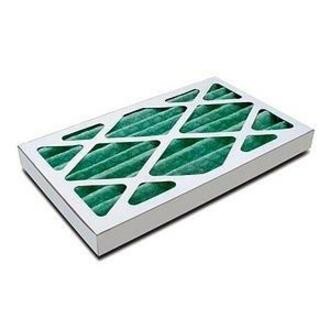

Air filtration to remove dirt and particulates
Adjustable depth for 19" EIA-310-D enclosures
